2002 Kia Spectra Base, StandardFACTORY OEM SERVICE PROCEDURE

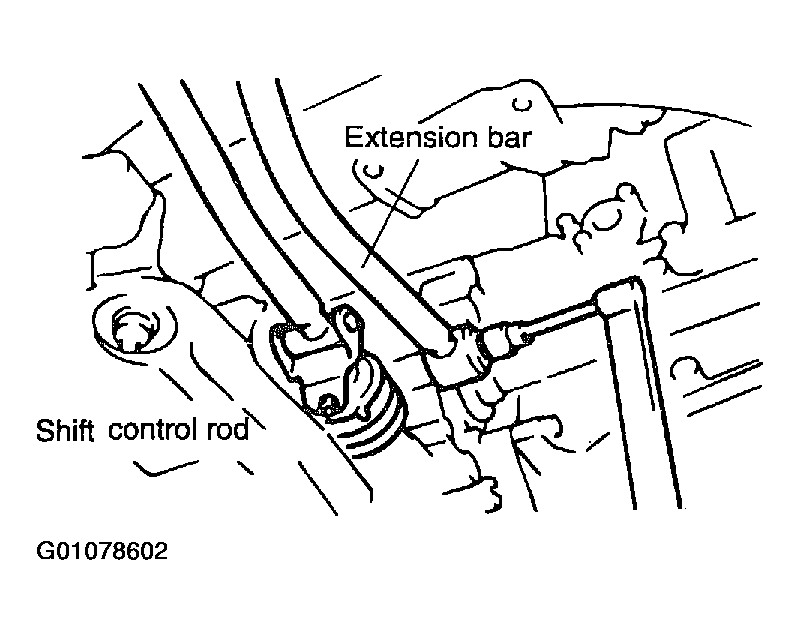

Extension Bar
- Install the extension bar to the floor, and then onto the transaxle. Tighten the extension bar nut at the transaxle.
Tightening torque: 23~34 lb. ft (31~46 N.m, 3.2~4.7 kg.m)
- Tighten the shifter bracket nuts to the specified torque.
- Tightening torque: 86.9~130.2 lb. in
- (9.8~14.7 N.m, 100~150 kg.cm)
- Tightening torque: 86.9~130.2 lb. in
