2002 Kia Spectra Base, StandardFACTORY OEM SERVICE PROCEDURE

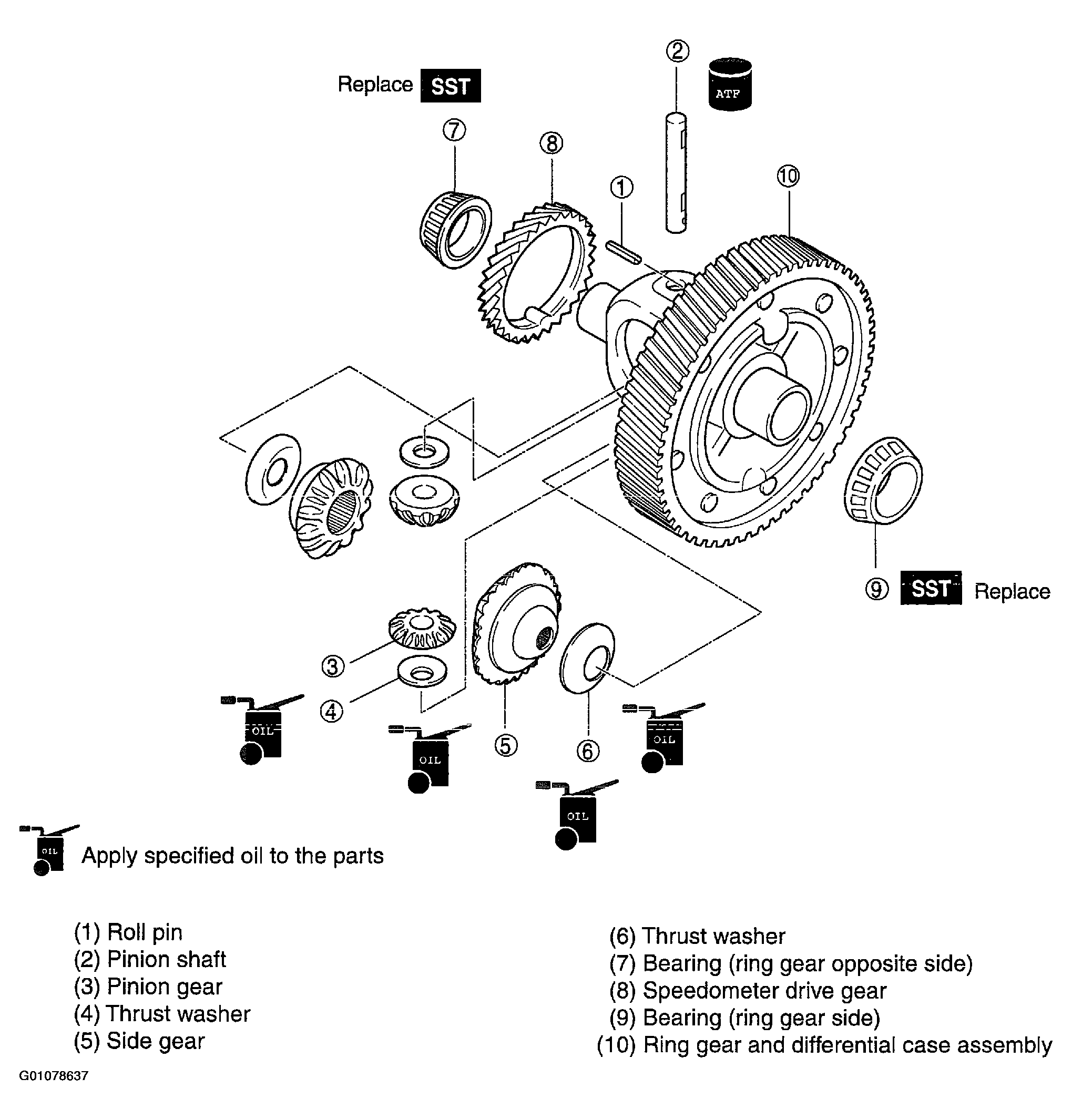

Manual Trans: Overhaul: Components: Differential: Notes
- Before disassembly, inspect backlash of side gears and pinion gears. Refer to PREINSPECTION .
- Disassemble in order shown in figure. Refer to DISASSEMBLY NOTE .
- Inspect all parts and repair or replace as necessary.
- Assemble in reverse order of disassembly. Refer to ASSEMBLY NOTE .
- Measure backlash after assembly. Refer to BACKLASH OF SIDE GEAR AND PINION GEAR .
