Release fuel pressure. See FUEL PRESSURE RELEASE . Disconnect battery negative cable. Install Fuel Pressure Gauge (0K2A1 131 001) on service port at center of fuel rail. See Fig 1.
Connect battery negative cable. To operate fuel pump, jumper DLC terminals FUEL PUMP and (B+). DLC is located on left side of engine compartment. See Figure.
Turn ignition on for 10 seconds or less. Check fuel pressure. See FUEL PRESSURE SPECIFICATIONS table. Turn ignition off and remove jumper wire.
If fuel pressure is too high, check for restricted return line. If return line is open, replace pressure regulator. See FUEL PRESSURE REGULATOR under FUEL SYSTEM in REMOVAL OVERHAUL & INSTALLATION article.
If fuel pressure is too low, block return line. Operate fuel pump again and see if pressure rises. If pressure rises, replace fuel pressure regulator. See FUEL PRESSURE REGULATOR under FUEL SYSTEM in REMOVAL OVERHAUL & INSTALLATION article. If pressure does not rise, check fuel pump maximum pressure. See MAXIMUM FUEL PRESSURE (RIO & SPECTRA) .

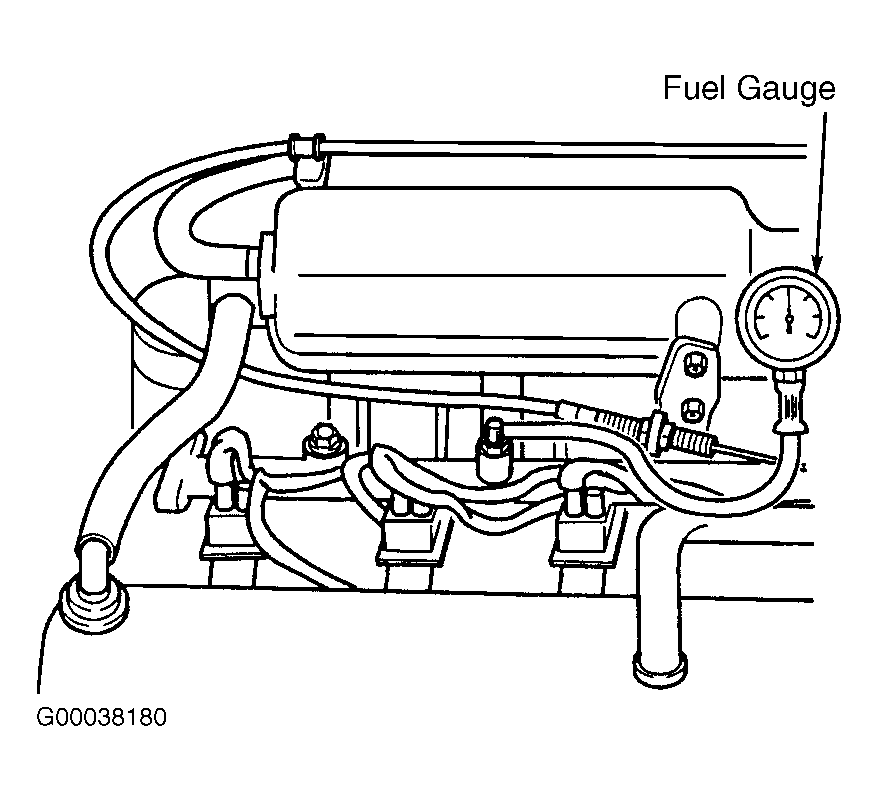

Fig 1: Installing Fuel Pressure Gauge (Spectra)

Courtesy of KIA MOTORS AMERICA, INC.
