2002 Kia Spectra Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Overrunning Clutch

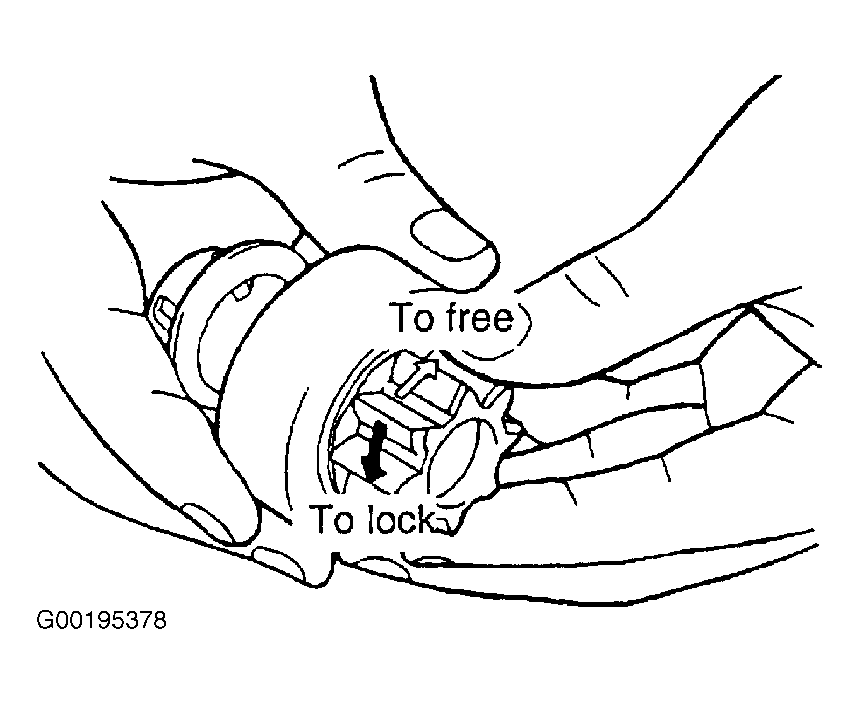

- While holding clutch housing, rotate the pinion. Drive pinion should rotate smoothly in one direction, but should not rotate in opposite direction. See Fig 1 . If clutch does not function properly, replace overrunning clutch assembly.
- Inspect pinion for wear or burrs. If pinion is worn or burred, replace overrunning clutch assembly. If pinion is damaged, also inspect ring gear for wear or burrs.
