2002 Kia Rio Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Specifications & Procedures: Pre-Inspection
- Pre-inspection check the tire inflation and set to the recommended pressure if necessary.
- Inspect the front wheel bearing play and correct if necessary.

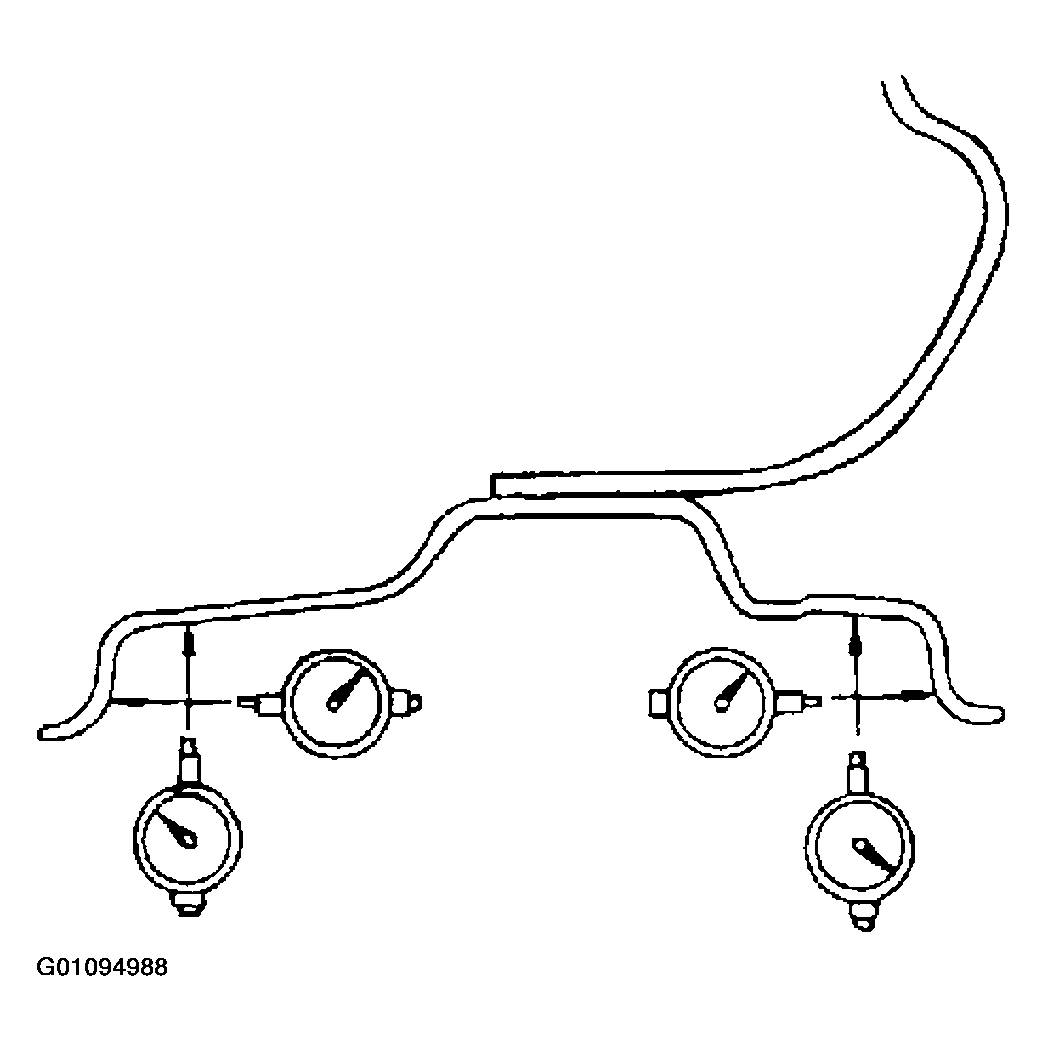

- Inspect the wheel and tire runout.
- Inspect the ball joints and steering linkage for excessive looseness.
- Place the vehicle on level ground with no luggage or passenger load.
- The difference in height from the center of the wheel to the fender brim between the left and right sides should be within 0.39 in (10 mm).NOTE: The caster and camber is not adjustable. The toe-in is adjustable.
