2002 Kia Rio Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Replacing Sensor Rotor

Remove the drive shaft assembly from the vehicle.
Remove the sensor rotor by using the SST (0K670 990 AA0) .

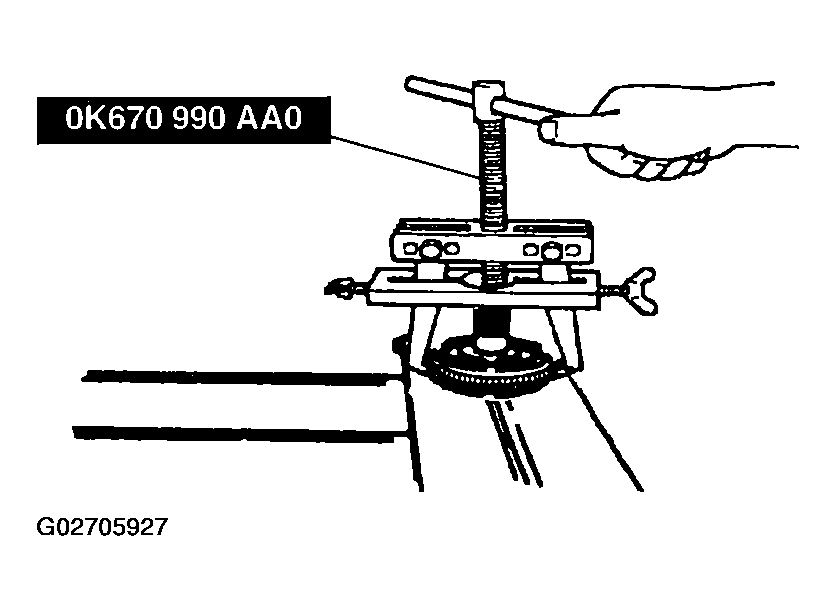

Fig 1: Removing Sensor Rotor From Drive Shaft
Courtesy of KIA MOTORS AMERICA, INC.
Install the sensor rotor by using suitable tool.

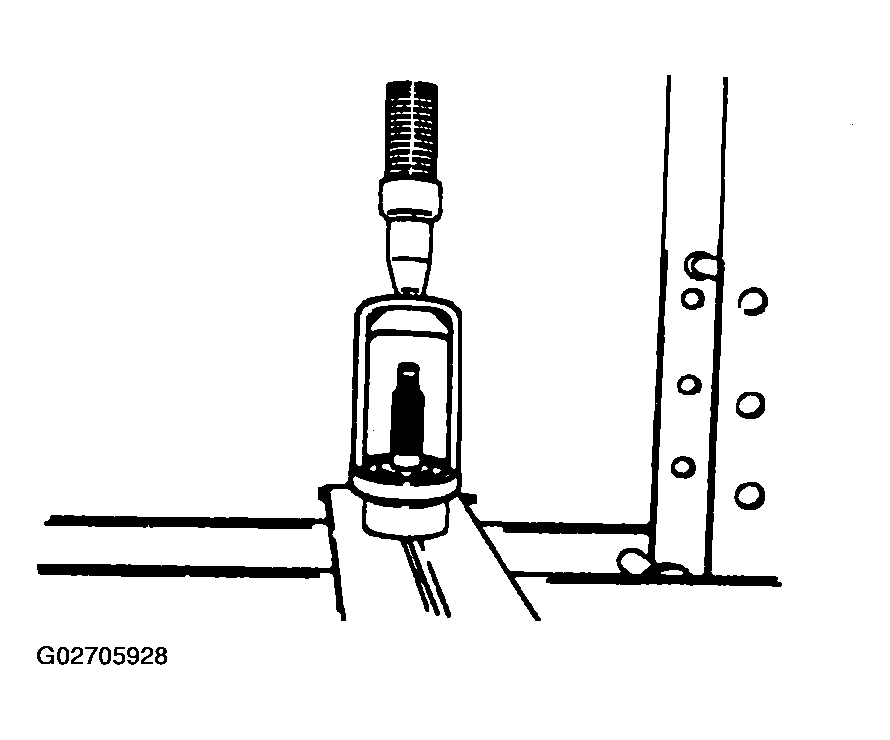

Fig 2: Installing Sensor Rotor To Drive Shaft
Courtesy of KIA MOTORS AMERICA, INC.
