2001 Kia Rio AutomaticFACTORY OEM SERVICE PROCEDURE

Main Control Valve Body: Reassembly

Insert 3-4 shift spring, 3-4 shift valve, and stop plug. Secure them with stop pin.

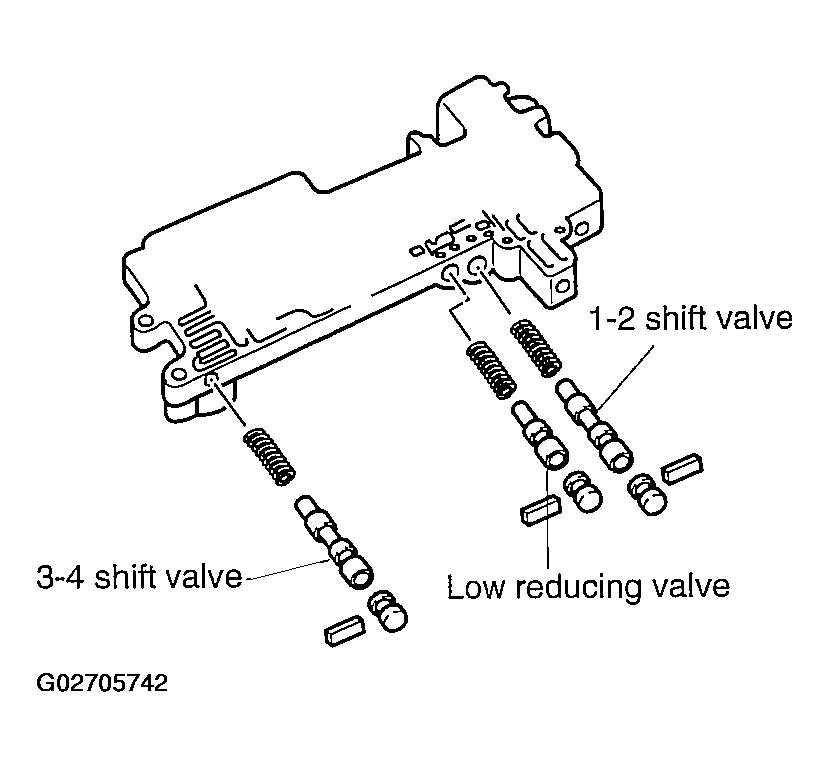

Fig 1: Installing 1-2 Shift Valve, 3-4 Shift Valve & Low Reducing Valve
Insert low reducing spring, low reducing valve, an stop plug. Secure them with stop pin.
Insert 1-2 shift spring, 1-2 shift valve, and stop plug. Secure them with stop pin.
Insert pressure regulator valve, pressure regulator spring, pressure regulator spring seat, regulator plug sleeve, pressure regulator plug, and stop plug. Secure them with roll pin.

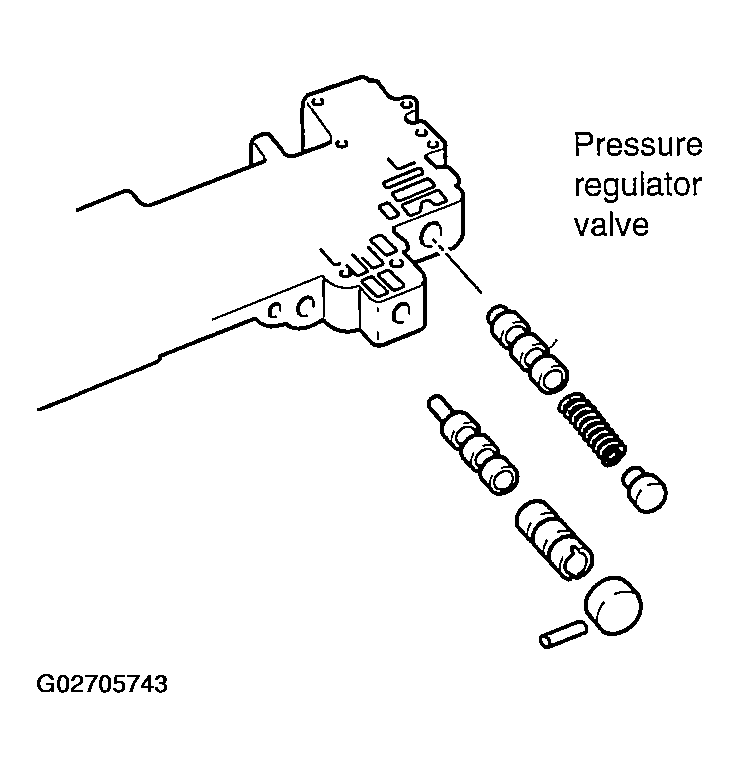

Fig 2: Installing Pressure Regulator Valve
Insert 2-3 timing valve and 2-3 timing spring. Secure them with spring retainer.

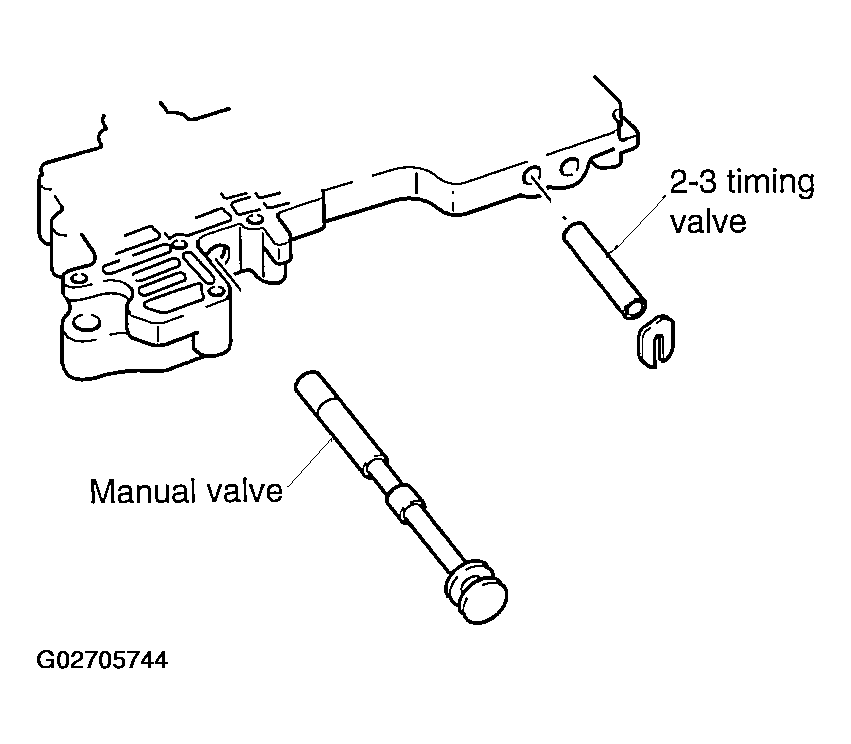

Fig 3: Installing 2-3 Timing Valve & Manual Valve
Proceed to insert manual valve.
