2001 Kia Rio AutomaticFACTORY OEM SERVICE PROCEDURE
Main Control Valve Body: Disassembly
NOTE:
- Each valve should slide in/out under its own weight.
- When a valve will not slide in/out under its own weight, depending on valve, push it out with a wire or replace valve body open-side down and lightly tap it with a soft hammer.
- If a valve surface or bore is scratched or damaged, replace control valve body.
- Do not drop or lose valves or internal parts.
- Before assembly, make sure all parts are thoroughly clean.
- Apply ATF to all parts and bores.
- Note proper direction of valves and internal parts.
- Do not reuse any part that has been dropped.
- Wrap a screwdriver or rod with tape before using it to insert a valve.

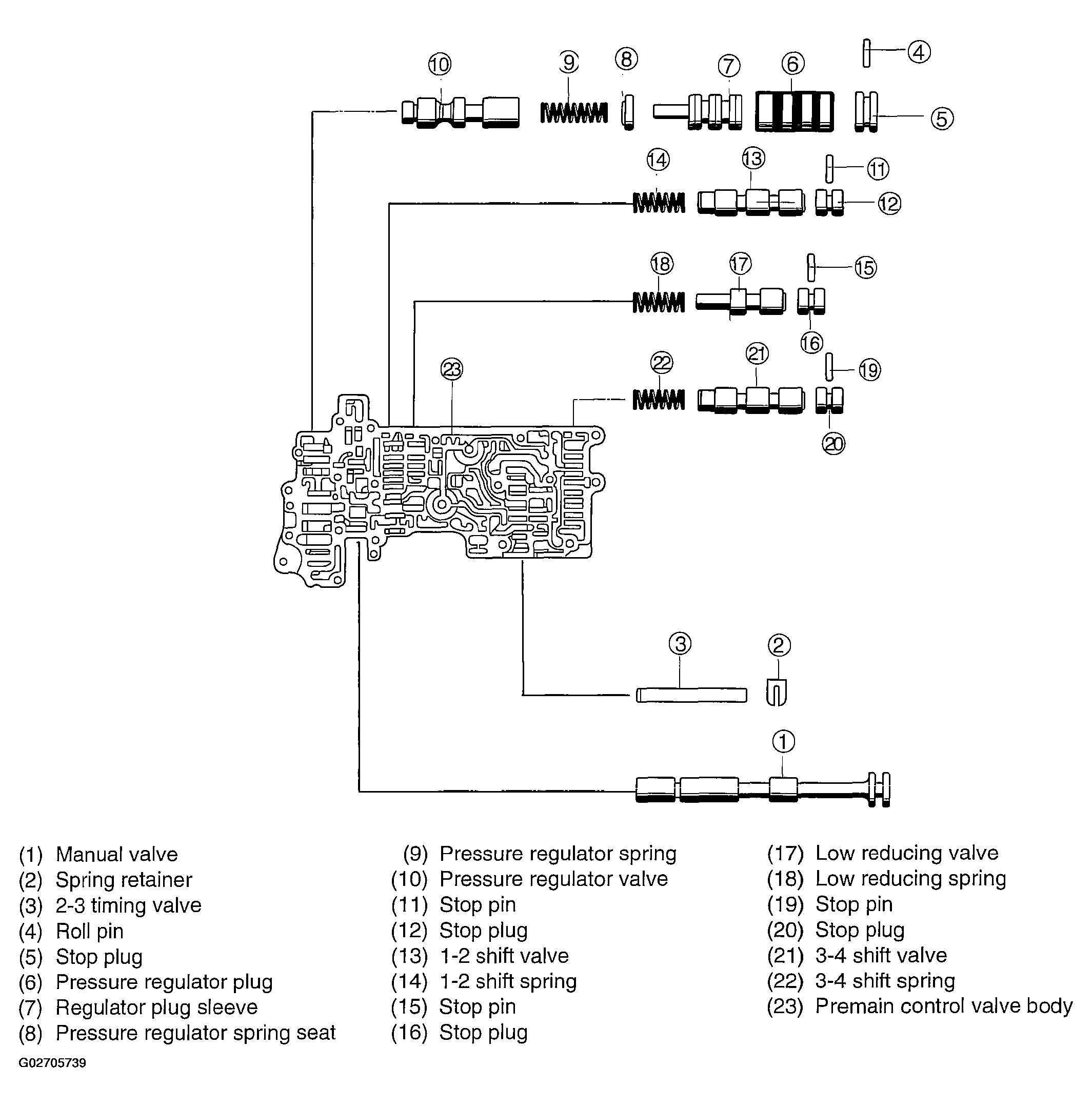

Disassemble in order shown in Fig 1 .
