2000 Kia Spectra GSX L4-1.8LFACTORY OEM SERVICE PROCEDURE
Ignition Cable: Testing and Inspection
1. Disconnect from coil and spark plugs.
2. Check for breaks in insulation.
3. Check inside high-tension lead connectors for corrosion or carbon deposits.

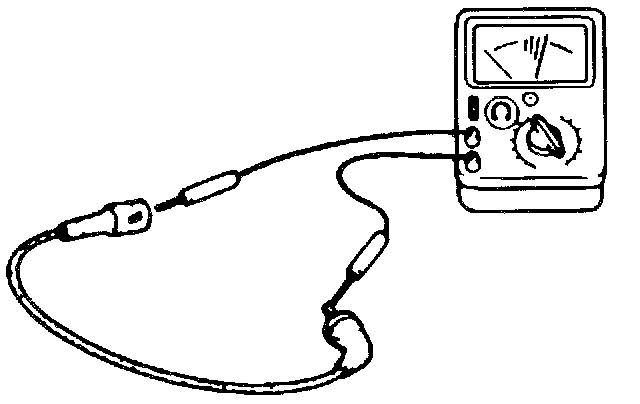

4. Connect high-tension lead to an ohmmeter and check resistance.
Resistance: 16kohms - per 3.28 feet (1m)
5. Replace if defective.
