Fuel Pump Relay

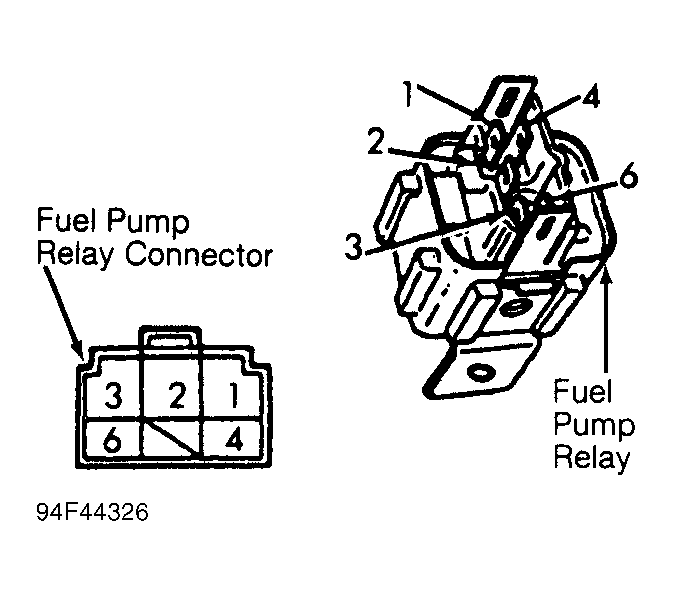

Locate fuel pump relay. Relay is located below center of instrument panel, in front of center console. Measure voltage at fuel pump relay connector as indicated. Disconnect fuel pump relay and check resistance at relay terminals as indicated. If voltage or resistance is not as specified, replace relay. See FUEL PUMP VOLTAGE TEST table and FUEL PUMP RESISTANCE TEST . See Fig 1 .
| Connector Pin No. & Ignition Switch Position | Volts | |
|---|---|---|
| 1 (BLU/RED Wire) | ||
| On | Zero | |
| Start | About 12 | |
| 2 (WHT/GRN Wire) | ||
| On | About 12 | |
| Start | About 12 | |
| 3 (PNK Wire) | ||
| On | Zero | |
| Start | About 12 | |
| 4 (BLU/GRN Wire) | ||
| On | About 12 | |
| Start | Zero | |
| 6 (BLK Wire) | ||
| On | Zero | |
| Start | Zero | |
| Check Between Pin Nos. | Ohms |
|---|---|
| 1 & 2 | Infinity |
| 2 & 4 | 109-226 |
| 3 & 6 | 21-43 |
