2025 Jeep Compass LimitedFACTORY OEM SERVICE PROCEDURE
Power Control Relay (PCR)
REMOVAL
- DISCONNECT AND ISOLATE THE NEGATIVE BATTERY CABLE. IF EQUIPPED WITH AN INTELLIGENT BATTERY SENSOR (IBS), DISCONNECT THE IBS CONNECTOR FIRST BEFORE DISCONNECTING THE NEGATIVE BATTERY CABLE.
- REMOVE THE AIR CLEANER ASSEMBLY. REFER TO AIR CLEANER, REMOVAL AND INSTALLATION .
- REMOVE THE POWER CONTROL RELAY (PCR) COVER.
- DISCONNECT THE WIRE HARNESS CONNECTOR FROM THE PCR.

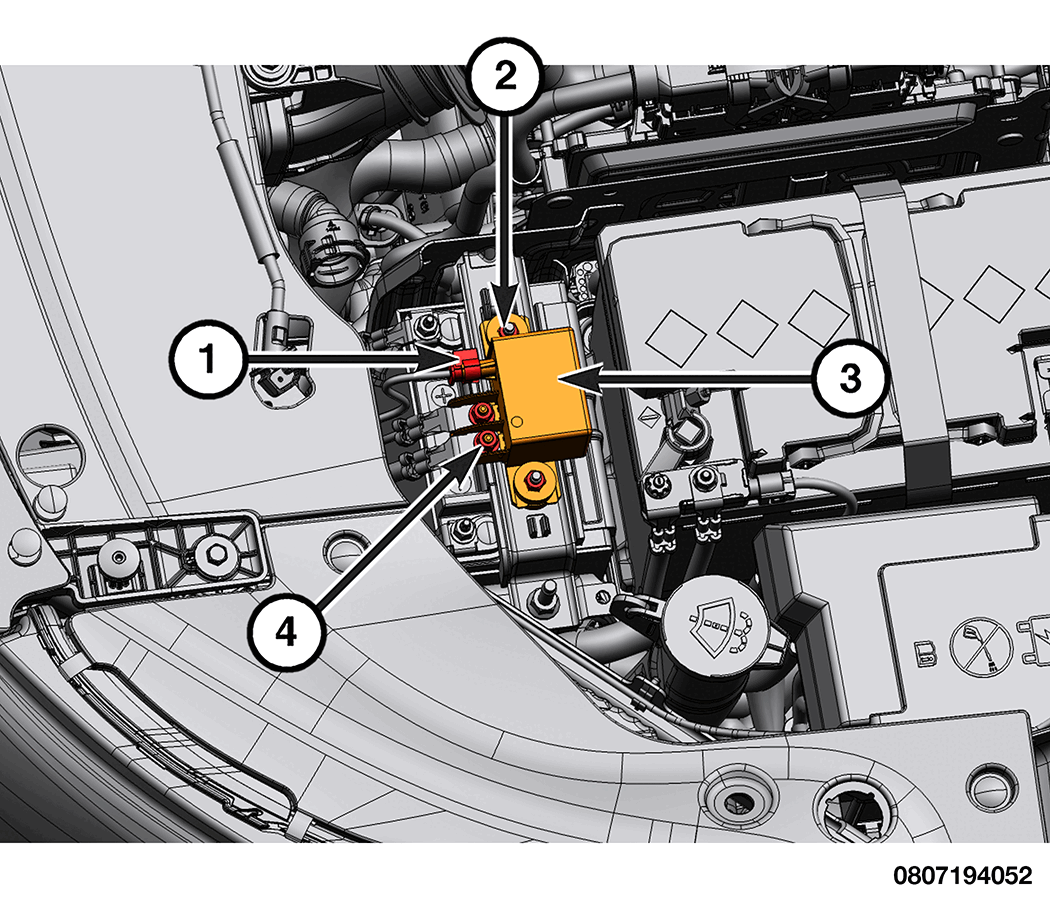

1 - PCR WIRE HARNESS CONNECTOR 2 - PCR NUTS 3 - PCR RELAY 4 - PCR B+ TERMINAL NUTS - REMOVE NUTS SECURING THE B+ TERMINALS FROM THE PCR.
- REMOVE THE TWO NUTS SECURING THE PCR TO THE PCR BRACKET TO REMOVE IT FROM THE VEHICLE.
