Power Liftgate: Notes
DESCRIPTION

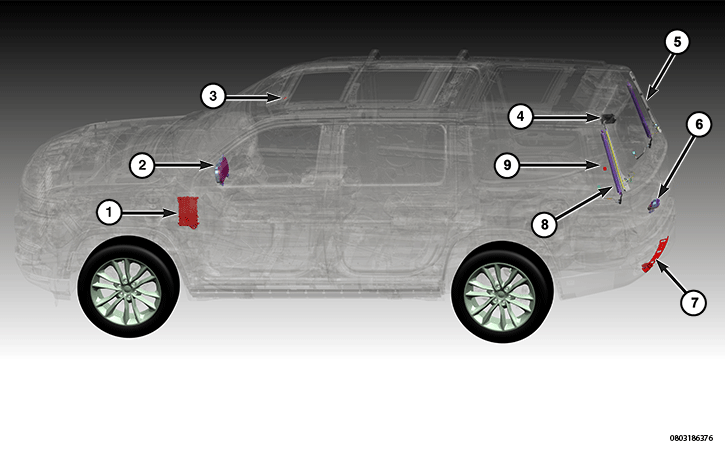

Some of the major components of the power liftgate system:
| 1. | Refer to BODY CONTROL MODULE (BCM) . |
| 2. | Refer to INSTRUMENT PANEL CLUSTER (IPC) . |
| 3, 9. | Refer to LIFTGATE COMMAND SWITCHES . |
| 4. | Refer to POWER LIFTGATE MODULE (PLGM) . |
| 5. | Refer to PINCH SENSORS . |
| 6. | Refer to POWER LIFTGATE LATCH AND ACTUATOR . |
| 7. | Refer to HANDS FREE RELEASE MODULE (HFRM) WITH KICK SENSOR . |
| 8. | Refer to POWER LIFTGATE DRIVE UNIT (PDU) - There are two PDUs, one located on each side of the liftgate. |
| - | Refer to CHIME . |
OPERATION
Under normal vehicle stopped conditions, the power liftgate system will accept inputs to open or close. Most of the inputs are toggle inputs. The PLGM has the responsibility of authorizing the power operation requests. Liftgate locked and unlocked requests are determined by a CAN signal to the PLGM.
