2023 Jeep Grand Cherokee L Laredo, AWDFACTORY OEM SERVICE PROCEDURE

Module-Brake System Control (RHD) Connector End View (D2721A)

Harness-Family: DASH

Color: BLACK

Gender: FEMALE

Part Number: 2209521-1_9-2322105-9

Part Description: Not Available

Connector No: D2721A

Option: RHD

Repair Kit Part Number: Not Available

Cavity Count: null

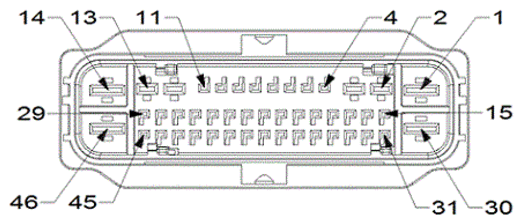

Fig 1: Module-Brake System Control Connector End View (RHD)
GCWD1252069Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z902 BK 6.0 GROUND N/A
4 B9 DG/GN 0.35 SPEED SIGNAL (+) N/A
5 B8 DG/BG 0.35 SPEED SIGNAL (-) N/A
6 B15 DG/WH 0.35 BRAKE SIGNAL 1 N/A
9 F942 PK/VT 0.35 FUSED IGNITION N/A
10 B7 DG/VT 0.35 SPEED SIGNAL (+) N/A
11 B6 DG/WH 0.35 SPEED SIGNAL (-) N/A
14 A66 RD/BN 6.0 FUSED B(+) N/A
15 B4 DG/GY 0.35 SPEED SIGNAL (+) N/A
16 B3 DG/YE 0.35 SPEED SIGNAL (-) N/A
17 D284 GY/BG 0.35 CAN FD (+) N/A
18 D284 GY/BG 0.35 CAN FD (+) N/A
19 B22 DG/GN 0.35 SPEED SIGNAL 1 N/A
25 D391 BG 0.35 PRIVATE CAN FD (-) N/A
26 D391 BG 0.35 PRIVATE CAN FD (-) N/A
28 B2 DG/BU 0.35 SPEED SIGNAL (+) N/A
29 B1 DG/OG 0.35 SPEED SIGNAL (-) N/A
30 Z902 BK 6.0 GROUND N/A
33 D285 BG 0.35 CAN FD (-) N/A
34 D285 BG 0.35 CAN FD (-) N/A
41 D392 DB/BG 0.35 PRIVATE CAN FD (+) N/A
42 D392 DB/BG 0.35 PRIVATE CAN FD (+) N/A
46 A67 RD/DB 6.0 FUSED B(+) N/A
(1) Pins not listed are not used for this connector
