2023 Jeep Compass RedFACTORY OEM SERVICE PROCEDURE
Power Transfer Unit

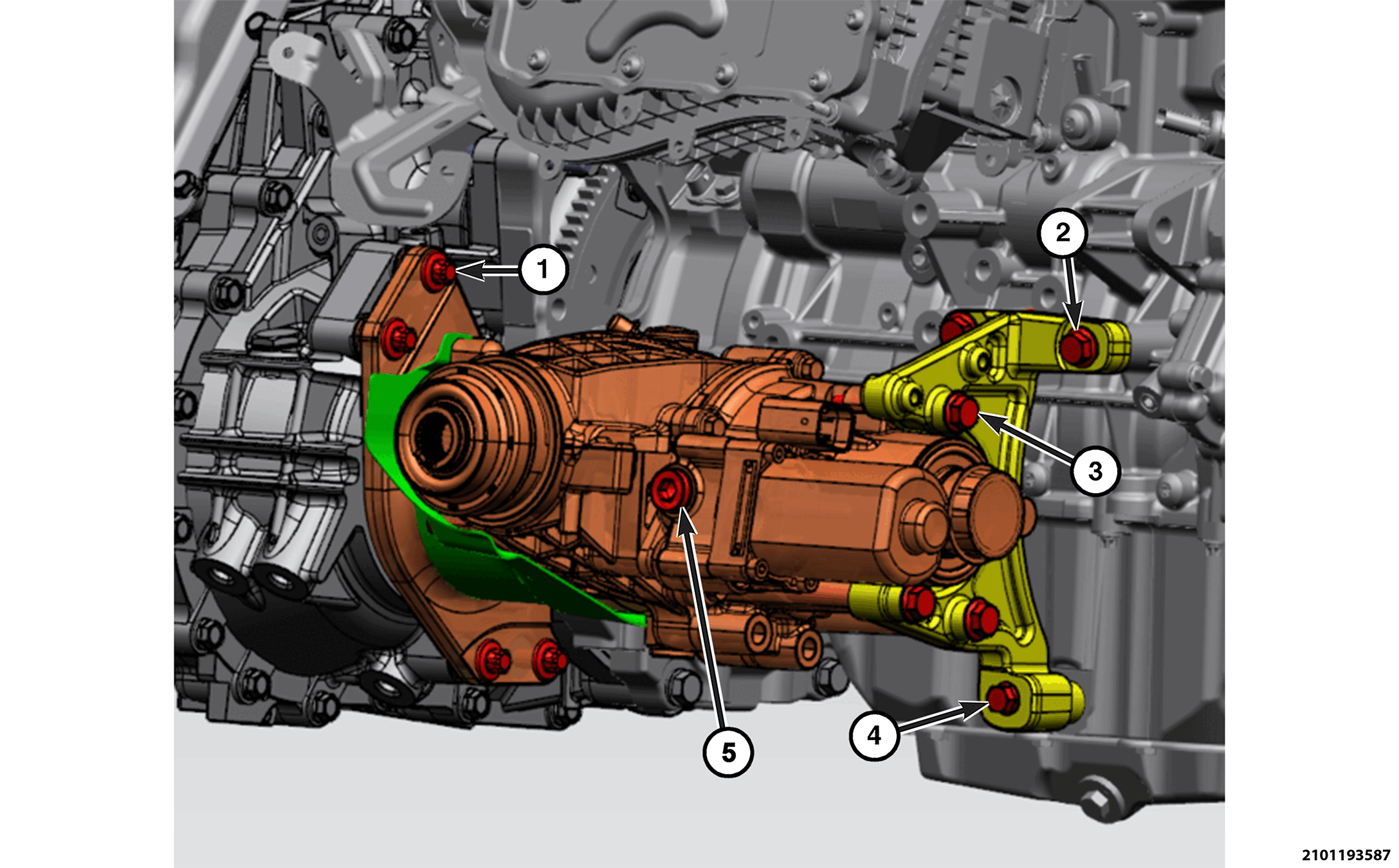

TORQUE SPECIFICATIONS - POWER TRANSFER UNIT
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Power Transfer Unit (PTU) to Transmission Bolts | 55 N.m (41 Ft. Lbs.) | - |
| 2 | PTU Bracket To Engine Block Bolts | 45 N.m (33 Ft. Lbs.) | - |
| 3 | PTU Bracket To PTU Bolts | 55 N.m (41 Ft. Lbs.) | - |
| 4 | PTU Bracket To Engine Oil Pan Bolt | 45 N.m (33 Ft. Lbs.) | - |
| 5 | PTU Oil Fill Plug | - | Tighten Securely |
| Not Shown | Actuator Motor To PTU Bolts | - | Tighten Securely |
| Not Shown | PTU Oil Drain Plug | - | Tighten Securely |
| Not Shown | PTU Heat Shield to PTU Bolts | 9 N.m (80 In. Lbs.) | - |
