Removal And Installation: Installation
- Position the DTCM with cover into place, then install and securely tighten the fasteners.
- Connect the ground cable and securely tighten the fastener.
- Connect the wire harness connector to the DTCM.
- Install the protective cover.
- Position and secure the side floor cover into the installed position. Make certain all of the fasteners are fully engaged.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.NOTE:

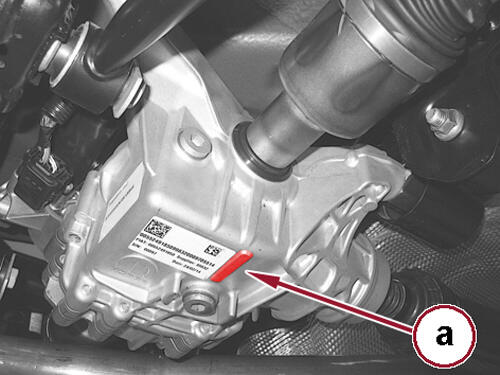

If installing a new DTCM, it is necessary to record the last two characters of the code in the area indicated (a) of the Rear Drive Unit (RDU) for performing the self learning procedure.
