WARNING: This page is about a different car, the 2021 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

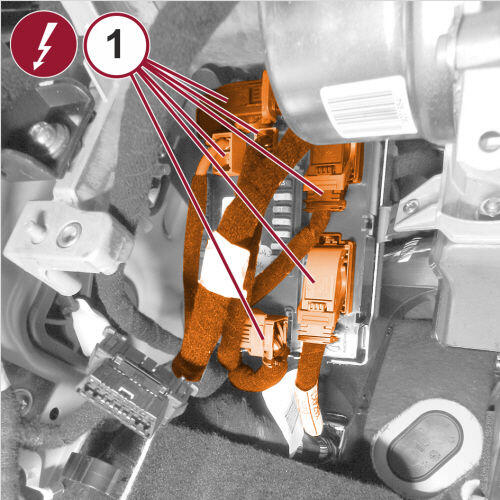

Connect the wire harness connectors to the back of the BCM.
Position and secure the BCM to the BCM mounting bracket.

Courtesy of CHRYSLER GROUP, LLC

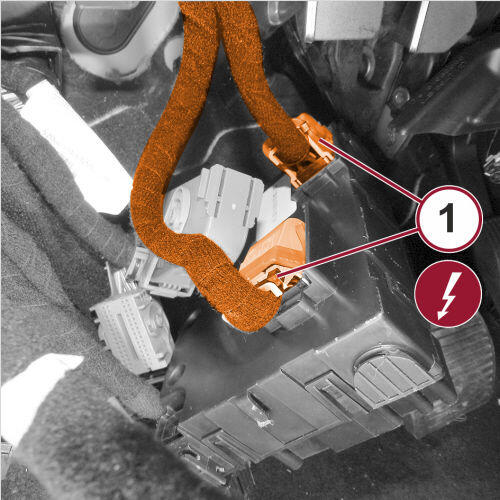

Connect the wire harness connectors to the front of the BCM.

Courtesy of CHRYSLER GROUP, LLC

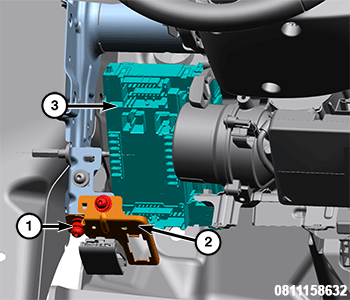

Position the hood release cable bracket (2) to the I/P carrier, install the fasteners (1) and tighten them securely.
Install the DLC connector.
Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
Restore BCM Proxi Configuration, located under "BCM" "MISC" tab.
Perform BCM programming. Refer to MODULE, BODY CONTROL (BCM), MODULE PROGRAMMING .
If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to determine if alignment of the PROXI configuration data into the new ECU is needed. If PROXI alignment is needed, follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under the Body Control Module (BCM) Miscellaneous Functions menu.
If applicable, any other ECU specific procedures.
