Description And Operation: Notes
DESCRIPTION

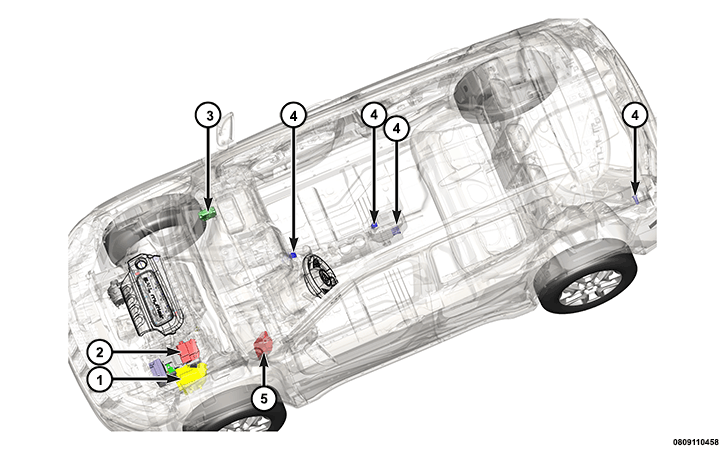

The power distribution system can consist of the following components:
| 1. | Refer to POWER DISTRIBUTION CENTER (PDC) . |
| 2. | Refer to BATTERY . |
| 3. | Refer to POWER INVERTER MODULE (PIM) . |
| 4. | Refer to POWER OUTLET 230 VOLT . |
| 5. | Refer to BODY CONTROL MODULE (BCM) . |
| -. | Refer to WIRELESS CHARGING PAD (WCP) . |
OPERATION
