2022 Jeep Cherokee XFACTORY OEM SERVICE PROCEDURE
Module, Fuel Pump, Control: Installation

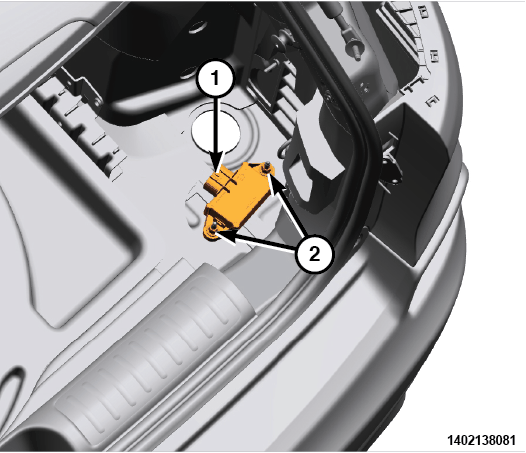

- Position the Fuel Pump Control Module (FPCM) (1) onto the studs and install nuts (2) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .
- Connect the FPCM wire harness connector.
- Install quarter trim panel. Refer to PANEL, QUARTER TRIM, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
