Radiator, Engine Cooling: Removal: Gas

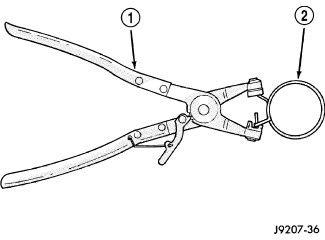

| 1 - HOSE CLAMP TOOL 6094 |
| 2 - HOSE CLAMP |
Do not remove the cylinder block drain plugs or loosen the radiator draincock with the system hot and under pressure. Serious burns from coolant can occur. Refer to DRAINING .
Do not waste reusable coolant. If the solution is clean, drain the coolant into a clean container for reuse.
Constant tension hose clamps are used on most cooling system hoses. When removing or installing, use only tools designed for servicing this type of clamp. Always wear safety glasses when servicing constant tension clamps.

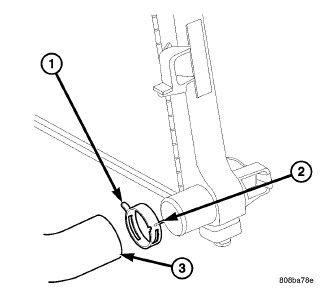

| 1 - TYPICAL CONSTANT TENSION HOSE CLAMP |
| 2 - CLAMP NUMBER/LETTER LOCATION |
| 3 - TYPICAL HOSE |
A number or letter is stamped into the tongue (2) of constant tension clamps (1). If replacement is necessary, use only an original equipment clamp with matching number or letter.
