Solenoid, Variable Valve Timing: Installation: Left

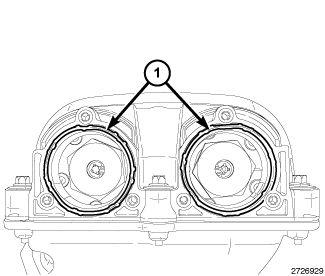

- Install the Variable Valve Timing (VVT) solenoid seals (1). The seals can be reused if not damaged.

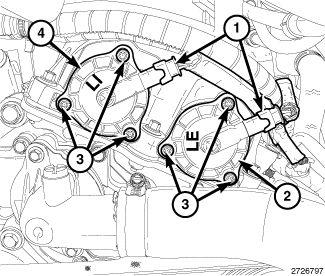

- Refer to the markings made at disassembly and install the intake VVT solenoid (4) and the exhaust VVT solenoid (2) in their original locations.
- Install the VVT solenoid mounting bolts (3) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .
- Connect the wire harness connector (1) to the VVT solenoid.

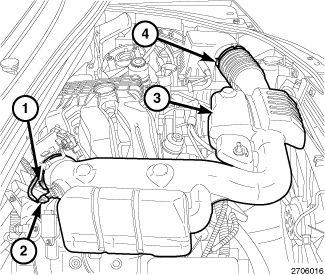

- Install the air inlet hose (3) to the air cleaner body and the throttle body and tighten the clamps (1, 4).
- Connect the wire harness connector (2) to the Inlet Air Temperature (IAT) sensor.
- Connect the negative battery cable and tighten the bolt to the proper specifications. Refer to TORQUE SPECIFICATIONS .
The Cam/Crank Variation Relearn procedure must be performed using the scan tool anytime there has been a repair/replacement made to a powertrain system, for example: flywheel, valvetrain, camshaft and/or crankshaft sensors or components.
