2021 Jeep Grand Cherokee TrackhawkFACTORY OEM SERVICE PROCEDURE
Sensor, TMAP-Intake Manifold: Removal: Intermediate
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Clean the area around the Temperature and Manifold Absolute Pressure (TMAP) sensor.

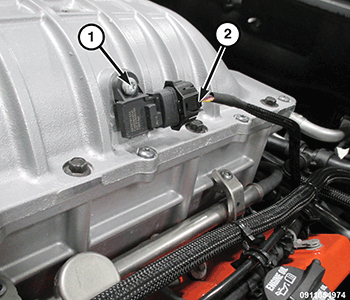

- Disconnect the TMAP sensor wire harness connector (2).
- Remove the screw (1) and the TMAP sensor.
