Module, Fuel Pump: Description: Notes

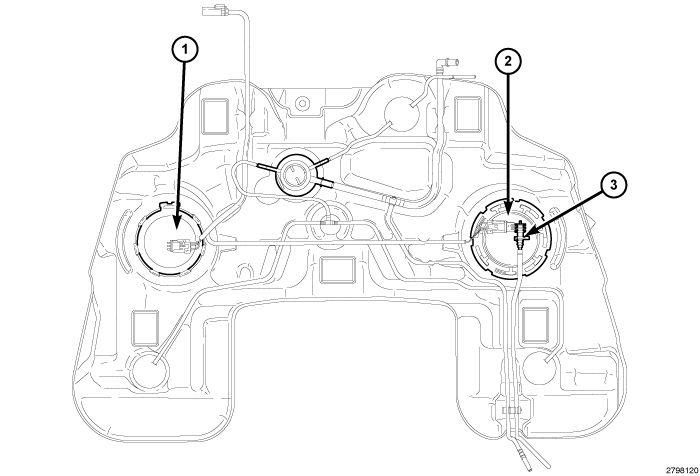

This vehicle uses a saddle type tank that has a reservoir on both sides of the driveshaft. The auxiliary fuel pump module assembly (1) is located on the right side top of fuel tank. The main fuel pump module (2) is located on the left side top of fuel tank. The fuel supply fitting (3) is located on top of the main fuel pump module.
