2021 Jeep Grand Cherokee TrackhawkFACTORY OEM SERVICE PROCEDURE
Module, Power Inverter: Removal
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Remove the passenger front seat. Refer to SEAT, FRONT, REMOVAL .

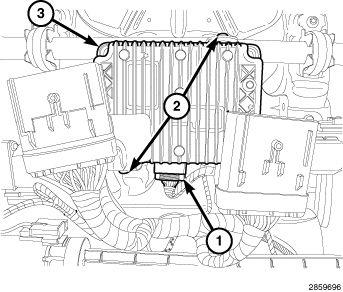

- Remove the power inverter module fasteners (2).
- Disconnect the wiring harness connector (1).
- Slide and remove the power inverter module (3) from the bracket.
