2021 Jeep Grand Cherokee TrackhawkFACTORY OEM SERVICE PROCEDURE
Front Switch Module
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

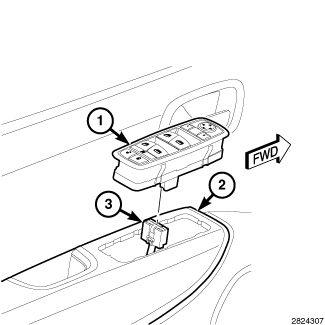

- Using a trim stick, or a suitable wide flat-bladed tool, pry the bezel of the front door switch module (1) upward from the front door trim panel armrest (2) to disengage the switch spring steel retainers.
- Position the switch module to access and disconnect the wiring harness connector (3).
- Remove the switch module from the vehicle.
