2021 Jeep Grand Cherokee TrackhawkFACTORY OEM SERVICE PROCEDURE
Module, Keyless Ignition Node (Kin): Installation

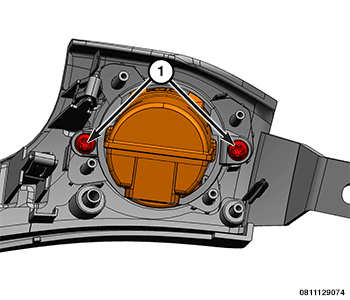

- Install the fasteners (1) securing the KIN module to the bezel.

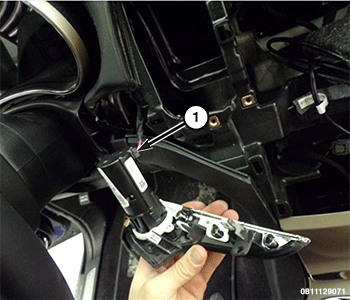

- Connect the Keyless Ignition Node (KIN) module wiring harness connector (1).

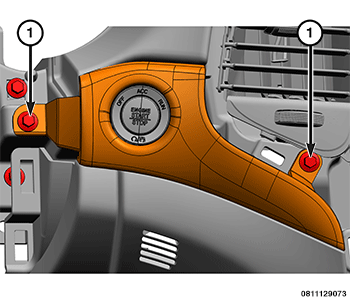

- Install the bezel onto the instrument panel and install the fasteners (1) securing the bezel.

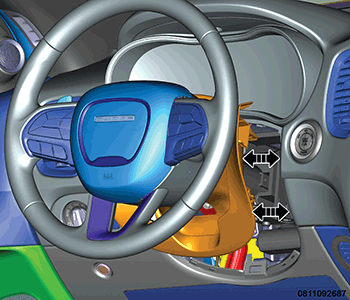

- Install the steering column gap hider and engage the retainers.
- Install the instrument panel center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, INSTALLATION .
- If the KIN was replaced, perform the (Radio Frequency (RF Hub) Module Verification Test. Refer to RADIO FREQUENCY HUB (RF HUB) VERIFICATION TEST .
