Module, Body Control (BCM): Operation: Notes
The BCM uses On-Board Diagnostics (OBD) to monitor all of the systems and circuits it controls, then sets active and stored Diagnostic Trouble Codes (DTC) for any monitored system faults it detects. The BCM will also send electronic message requests to the Instrument Cluster (IC) (also known as the Instrument Panel Cluster/IPC) for the display of certain textual warning messages related to some detected system conditions or faults.
The hardwired inputs and outputs of the BCM may be diagnosed using conventional diagnostic tools and procedures. Refer to the appropriate wiring information. However, conventional diagnostic methods will not prove conclusive in the diagnosis of the BCM electronic controls or the communication between modules and other devices that provide some features of the BCM-controlled systems. The most reliable, efficient and accurate means to diagnose the BCM or the electronic controls and communication related to BCM-controlled systems operation requires the use of a diagnostic scan tool. Refer to the appropriate diagnostic information.

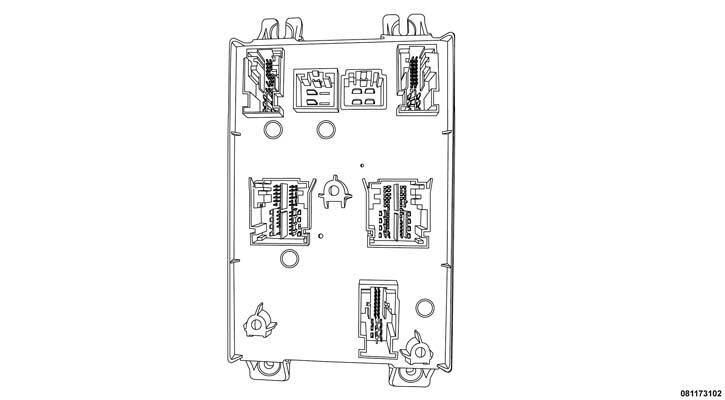

There are no serviceable fuses or relays on this BCM.
