2021 Jeep Compass TrailhawkFACTORY OEM SERVICE PROCEDURE
Removal And Installation: Installation
- If removed, install the steering wheel switches.

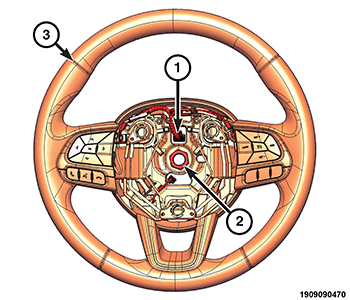

- Position the steering wheel (3) on the shaft, aligning the references on the steering wheel and on the steering column.
- If equipped, install the steering wheel damper.
- Connect the steering wheel wire harness connector (1).
- Install a NEW steering wheel nut (2) and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
- Install drivers airbag. Refer to AIR BAG, DRIVER, REMOVAL AND INSTALLATION .
- Connect the negative battery cable.
