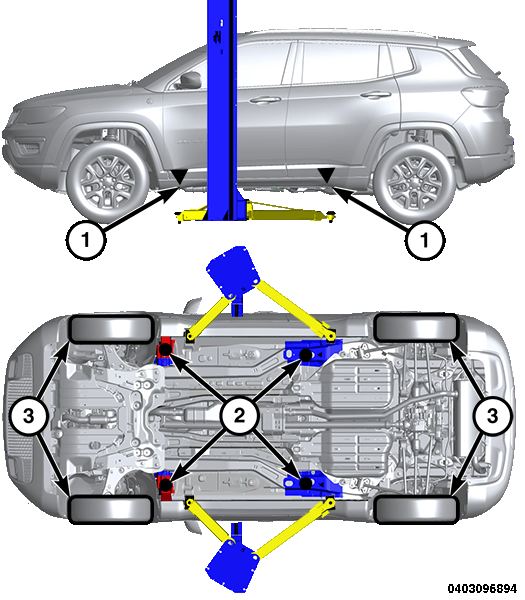

Standard Procedure - Hoisting
| 1 - FRAME CONTACT LIFT (SINGLE POST) |
| 1 - CHASSIS LIFT (DUAL LIFT) |
| 1 - OUTBOARD LIFT (DUAL LIFT) |
| 2 - ALTERNATE LIFTING LOCATIONS |
| 2 - FLOOR JACK |
| 3 - DRIVE ON HOIST |
The hoisting and jack lifting points provided are for a complete vehicle. When the engine or rear suspension is removed from a vehicle, the center of gravity is altered making some hoisting conditions unstable. Properly support or secure vehicle to hoisting device when these conditions exist. Failure to follow these instructions may result in serious or fatal injury.
