2021 Jeep Compass TrailhawkFACTORY OEM SERVICE PROCEDURE

Removal And Installation

REMOVAL

  1. Open the cover of the fuse box in the engine compartment and remove the fuse F21 (15 A) of the fuel pump.
  2. Start the engine and run until the fuel in the lines is depleted.
  3. Install the fuse removed earlier and close the fuse box cover.
  4. Remove the rear seat cushion. Refer to SEAT CUSHION, REMOVAL AND INSTALLATION .

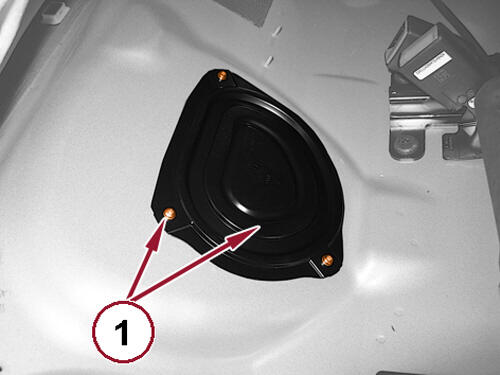

    GC0164467Courtesy of CHRYSLER GROUP, LLC
  5. Lift the cover, unscrew the screws and remove the cover (1) to access the fuel pipes.

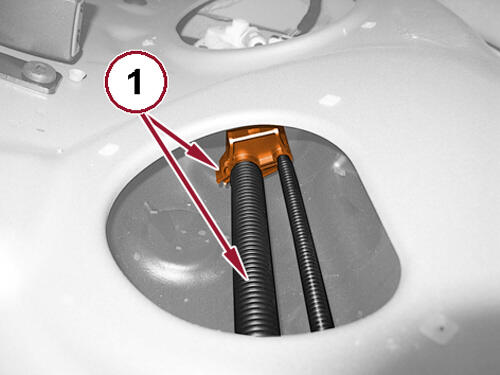

    GC0164475Courtesy of CHRYSLER GROUP, LLC
  6. Open the clamp (1) and release the fuel vapor hoses.

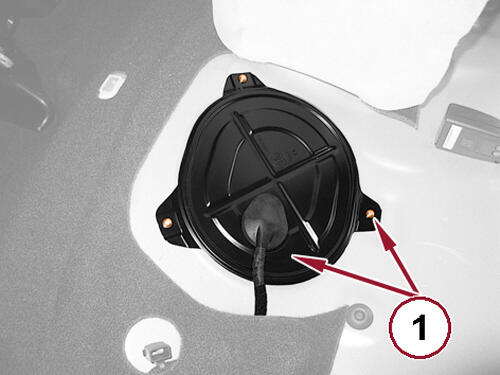

    GC0164830Courtesy of CHRYSLER GROUP, LLC
  7. Lift the cover, unscrew the screws and remove the cover to access the fuel pump.

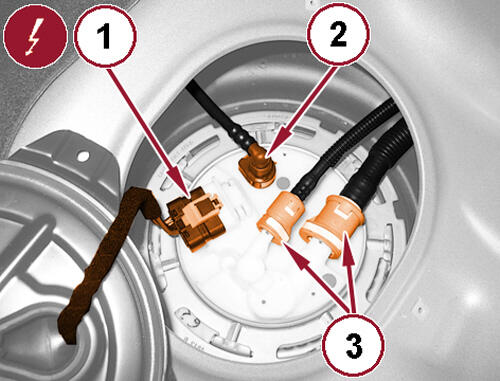

    GC0162995Courtesy of CHRYSLER GROUP, LLC
  8. Unplug the wire harness connector (1) from fuel pump.
  9. Disconnect the fuel delivery pipe quick coupling (2).
  10. Disconnect the fuel vapor pipe quick couplings (3).

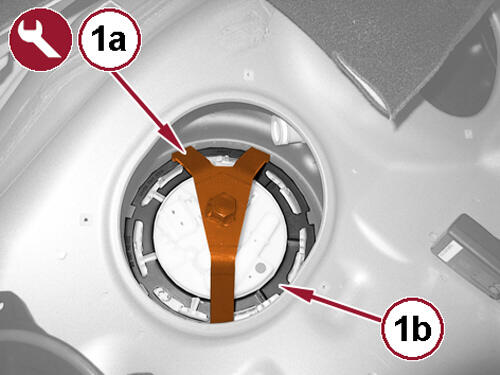

    GC0165038Courtesy of CHRYSLER GROUP, LLC
  11. Mount the 2000002100 (EMEA) or (special tool #9340, SAE Fuel Pump Lock Ring Wrench) (NAFTA) tool (1a) and remove the pump assembly mounting ring set (1b).

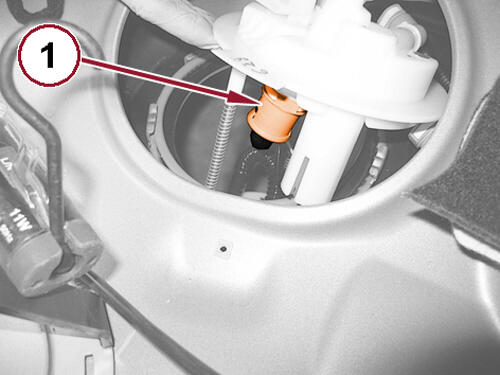

    GC0163586Courtesy of CHRYSLER GROUP, LLC
  12. Disconnect the quick coupling of the fuel vapor recovery pipe (1).

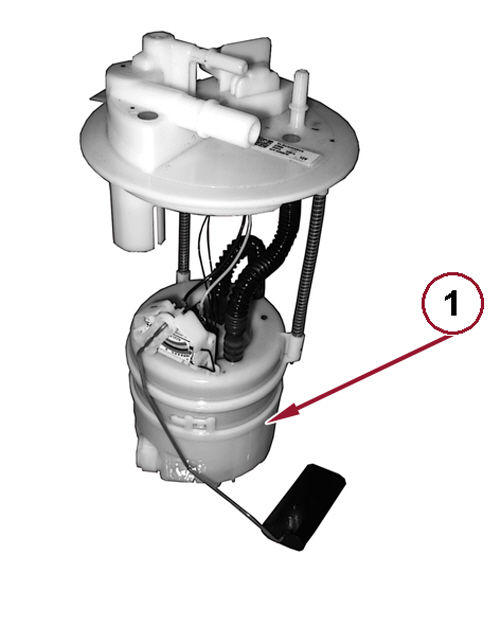

    GC0164379Courtesy of CHRYSLER GROUP, LLC
  13. Remove the fuel pump assembly (1).

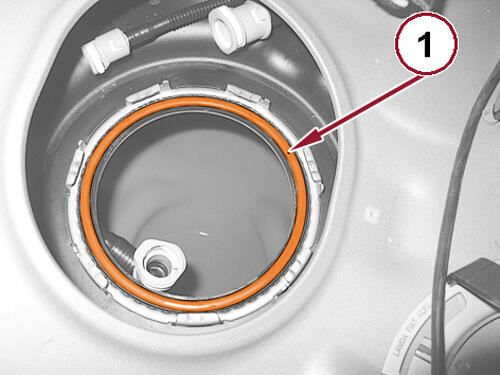

    GC0164111Courtesy of CHRYSLER GROUP, LLC
  14. Remove the seal on the tank (1).

INSTALLATION

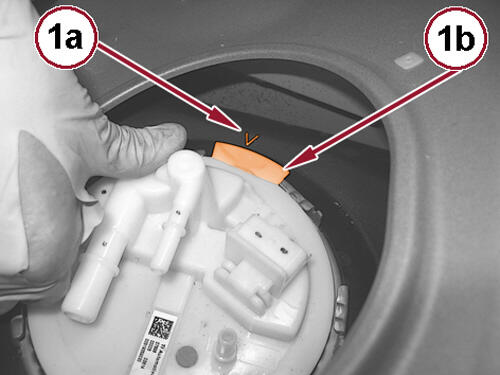

GC0164383Courtesy of CHRYSLER GROUP, LLC
  1. Install the fuel pump assembly using a NEW  tank seal, taking care to align the reference (1a) on the tank with the appendix (1b) of the pump.

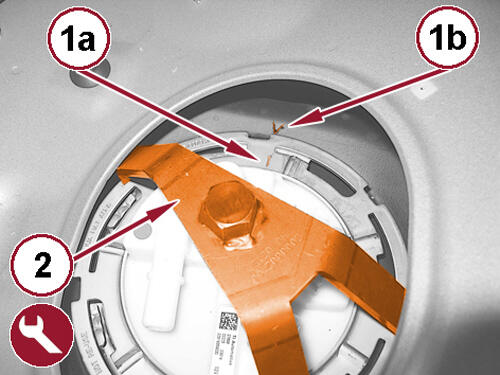

    GC0165518Courtesy of CHRYSLER GROUP, LLC
  2. Install the fuel pump assembly mounting ring, by aligning the reference (1a) with the reference (1b) on the tank.
  3. Mount the 2000002100 (EMEA) or (special tool #9340, SAE Fuel Pump Lock Ring Wrench) (NAFTA) tool (2) and tighten the fuel pump assembly retaining nut.
  4. Connect the fuel vapor quick coupling.
  5. Connect the quick coupling of fuel supply hose.
  6. Connect the wire harness connector to the fuel pump.
  7. Install the access cover to the fuel pump, tighten the screws and lower the cover.
  8. Install the rear seat cushion. Refer to SEAT CUSHION, REMOVAL AND INSTALLATION .
