Load Testing A Ground Circuit
DIAGNOSTIC LOAD TEST (GROUND CIRCUIT)
- multimedia:A supplement to the article is available.
- Disconnect the connector from the device(s) to gain access and isolate the terminal for the circuit being tested.
- Connect the positive lead of the load test tool to the positive side of the Battery.

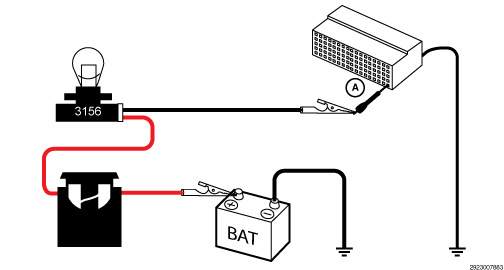

- Using an approved connector back probe tool, connect the negative lead of the load test tool to the ground circuit at the component harness connector (A). Note:
refer to the diagram above.NOTE:
The bulb on the load test tool should be illuminated and bright if there is no resistance in the ground circuit.
