2021 Jeep Cherokee TrailhawkFACTORY OEM SERVICE PROCEDURE
Relay, In-Rush Current Reduction: Installation

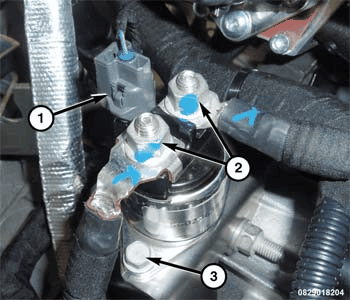

- Position the In-Rush Current Relay (ICR) to the bracket.
- Install the screws (3) securing the ICR to the bracket and tighten securely.
- Connect and fasten the two terminal ends to the ICR, then tighten the two nuts (2) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Connect the wire harness connector (1) to the ICR.
- Connect the negative battery cable(s). Refer to INSTALLATION .
