2021 Jeep Cherokee TrailhawkFACTORY OEM SERVICE PROCEDURE
Charging System (Service Information): Generator: Removal: 2.0L
- Disconnect and isolate the negative battery cable(s). Refer to NEGATIVE CABLE .
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the belly pan. Refer to BELLY PAN, REMOVAL .
- Remove the serpentine belt. Refer to REMOVAL .
- Remove the right halfshaft. Refer to REMOVAL .
- If equipped, remove the Power Transfer Unit (PTU). Refer to REMOVAL
.

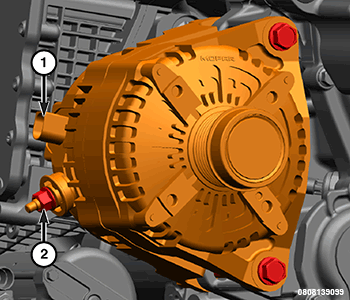

- Remove the B+ nut (2) and remove the B+ cable and position aside.
- Disconnect the generator field wire harness connector (1) and position aside.

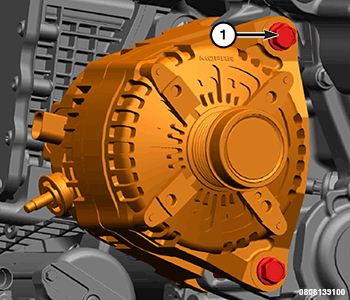

- Remove the two bolts (1) from the generator.
- Remove the generator from the vehicle.
