2021 Jeep Cherokee TrailhawkFACTORY OEM SERVICE PROCEDURE
Outlet, Power: Removal
NOTE:
The Universal Serial Bus (USB) charge ports are serviced with the media hub. Refer to MEDIA HUB, REMOVAL .
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

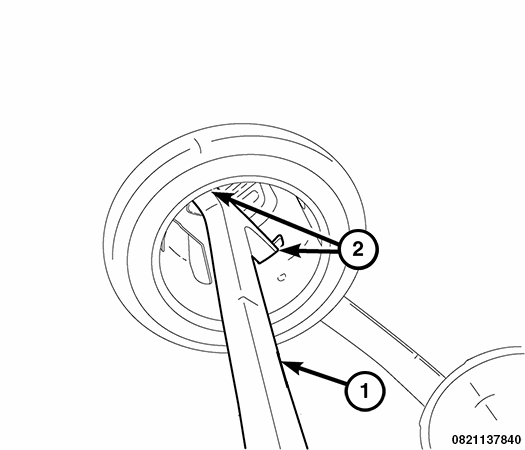

- Look inside and note position of the retaining bosses (2).
- Insert Remover, Power Outlet (special tool #10246A, Remover, Power Outlet) (1) into the retaining bosses (2) of the power outlet.
- Pull out the base through the mounting ring by gently rocking the tool.
- Disconnect the wire harness connector (1) from the power outlet (2).
- Set the base aside and remove the base mount ring.
