2021 Jeep Cherokee TrailhawkFACTORY OEM SERVICE PROCEDURE
Installation - PDC Assembly

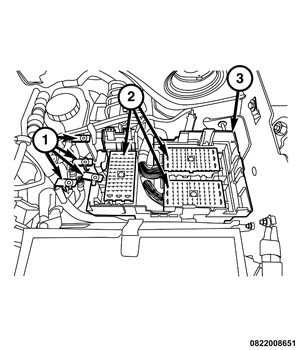

- Position the upper PDC tray to the PDC base (3) in the engine compartment.
- Connect the three bulkhead connectors (2) located in the base of the PDC to the upper PDC tray bottom.

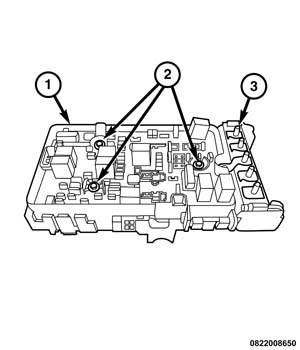

- Securely tighten the fasteners (2) through the upper PDC tray (1).
- Connect all power feeds to their proper PDC posts (3).
- Install the PDC cover onto the PDC assembly.
- Install the positive (B+) Power from the battery before touching the metal fasteners on the Z case fuses.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
