2021 Jeep Cherokee High Altitude, Automatic T/Case ControlFACTORY OEM SERVICE PROCEDURE
Front Knock Sensor
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Remove the generator. Refer to GENERATOR, REMOVAL
.

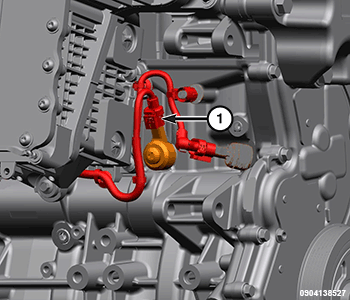

- Unlock and disconnect the knock sensor wire harness connector (1).

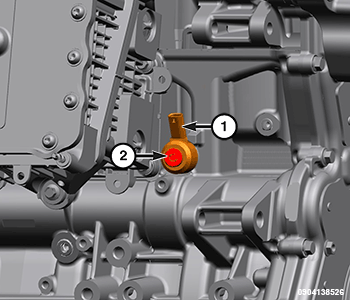

- Remove the mounting bolt (2) and knock sensor (1).
