2017 Jeep Wrangler Rubicon, Automatic TransFACTORY OEM SERVICE PROCEDURE
Heater, Engine Block: Installation
- Thoroughly clean core hole and heater seat.
- Install the engine block heater (1) into the engine block. Tighten the bolt (2) 12 N.m (106 in. lbs.).
- Connect the power cord to the engine block heater.

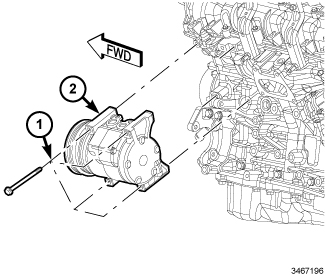

- Position the A/C compressor (2) to the engine block. Tighten the bolts (1) to 28 N.m (21 ft. lbs.).
- Reconnect the A/C compressor (2) wire harness connector.
- Install the serpentine belt.

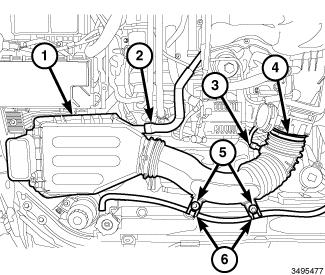

- Install the air filter housing cover (1).
- Install the air intake support bolts (5).
- Install the air intake hose to the throttle body (4) and tighten the clamp.
- Reconnect the temperature sensor electrical sensor connector (3).
- Install the air breather tube (2).
- Reconnect the negative battery cable.
- Install the engine cover.
