2017 Jeep Wrangler Rubicon, Automatic TransFACTORY OEM SERVICE PROCEDURE

Fan, Cooling: Installation: Diesel

  1. Assemble fan blade onto viscous fan drive. Tighten the bolts to 25 N.m (18 ft. lbs.).

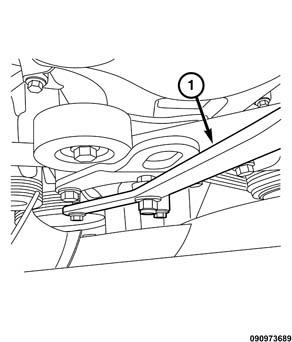

    GC0155083Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    The viscous fan and fan shroud must be installed as an assembly.

  2. Position fan drive assembly and fan shroud, thread the fan drive assembly onto the drive pulley. Using the (special tool #6958, Wrench, Spanner) and (special tool #8346, Pins, Adapter) (2) and suitable fan wrench, tighten the fan to 50 N.m (37 ft. lbs.).
    GC0155082Courtesy of CHRYSLER GROUP, LLC
  3. Install the fan shroud to radiator mounting bolts (2) and tighten the bolts to 9 N.m (80 in. lbs.).
    GC0155078Courtesy of CHRYSLER GROUP, LLC
  4. Connect the viscous fan wire harness connector (1).
  5. Install the fan assembly into the lower support mounts. Tighten the bolts to 9 N.m (80 in. lbs.).
    GC0155075Courtesy of CHRYSLER GROUP, LLC
  6. Install the upper fan seal.
  7. Install the upper fan shroud (1). Tighten the bolts (3) to 9 N.m (80 in. lbs.).
  8. Install the coolant hose (2) to fan shroud (1).
  9. Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION .
  10. Connect the negative battery cable.
