2014 Jeep Compass Limited, FWDFACTORY OEM SERVICE PROCEDURE

Power Transfer Unit (Service Information): Disassembly: Disassembly

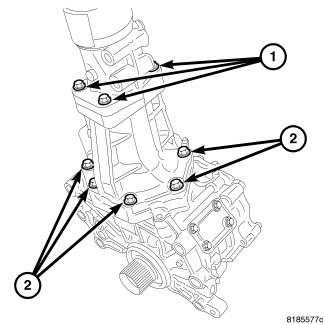

Fig 1: Extension And Pinion Housing Bolts

Courtesy of CHRYSLER GROUP, LLC

Remove extension housing bolts.

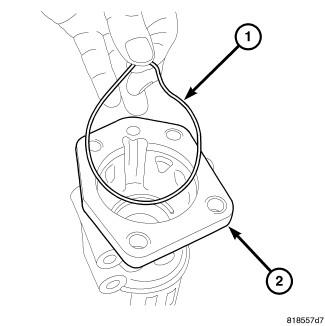

Fig 2: Extension Housing O-Ring
Courtesy of CHRYSLER GROUP, LLC
Remove the extension housing.
Remove the extension housing O-ring.

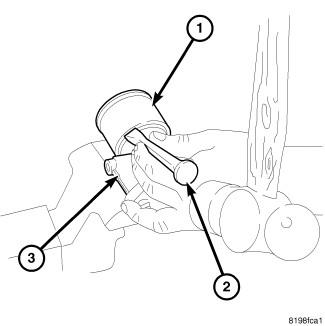

Fig 3: Removing Dust Shield From Extension Housing
Courtesy of CHRYSLER GROUP, LLC
Using a chisel (2) remove the dust shield (1) from the extension housing (3).

Fig 4: Extension And Pinion Housing Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the pinion housing bolts.

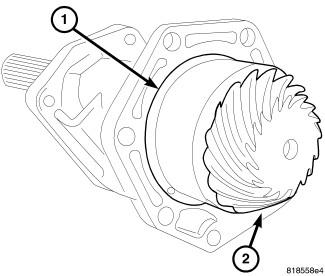

Fig 5: Pinion Housing
Courtesy of CHRYSLER GROUP, LLC
Remove the pinion housing.

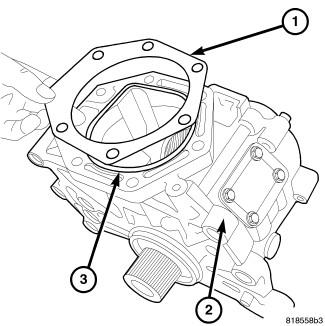

Fig 6: Pinion Housing Shim
Courtesy of CHRYSLER GROUP, LLC
Remove the pinion housing shim.
Remove the pinion housing O-ring.

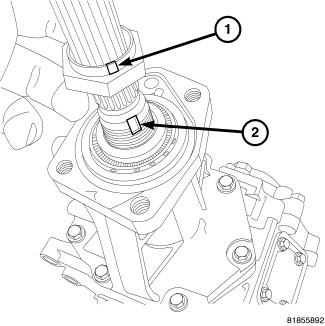

Fig 7: Pinion Shaft Nut
Courtesy of CHRYSLER GROUP, LLC
