2014 Jeep Compass Limited, FWDFACTORY OEM SERVICE PROCEDURE
Lock Cylinder Housing
- Position the lock cylinder housing in the RUN position.

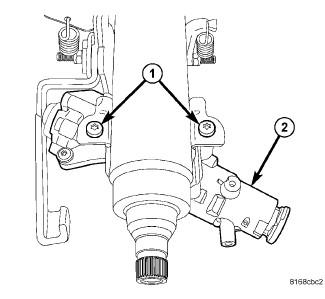

- Align the lock cylinder housing (2) with the steering column.
- Using Torx® Plus Bit 1004, or equivalent Tamper-Proof Torx® Plus (five point) 30 bit, install the two screws (1) fastening the lock cylinder housing (2) to the column. Tighten the screws to 16 N.m (142 in. lbs.).
