2014 Jeep Compass Limited, FWDFACTORY OEM SERVICE PROCEDURE
Plug, Glow: Installation: Installation
- Clean glow plug bay and install glow plug.

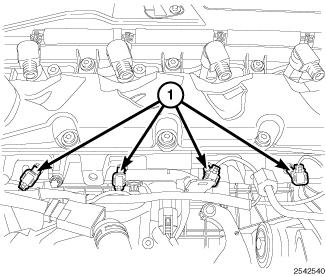

- Install glow plugs (1). Tighten glow plugs to 11 N.m (97 in. lbs.).

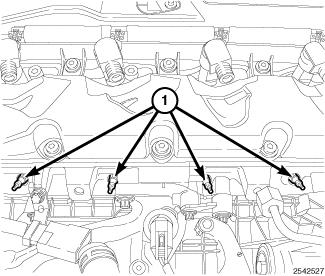

- Connect glow plug wire harness connector (1).
- Connect the glow plug four way harness connector.

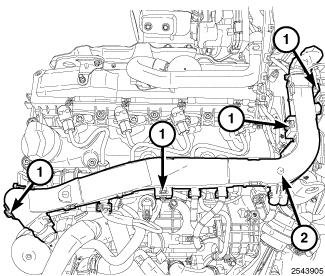

- Position the wire harness (2) and push down to lock tabs (1).

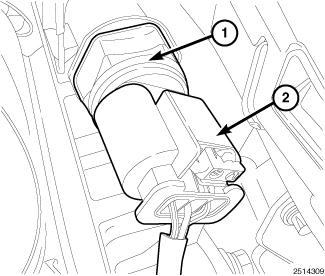

- Connect the fuel rail pressure sensor harness connector (2).

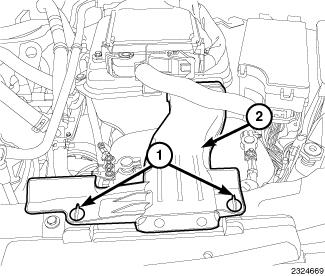

- Install engine cover.
- Connect the negative battery cable.
- Install air inlet duct (2) and lock the quarter turn lock tabs (1).
