2014 Jeep Compass Limited, FWDFACTORY OEM SERVICE PROCEDURE
Module, Glow Plug: Removal: Removal
- Disconnect the negative battery cable.
- Remove the air cleaner assembly. .
- Disconnect the fuel lines.

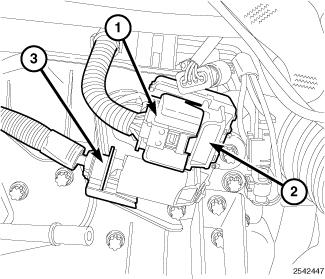

- Disconnect the glow plug harness connector (1).
- Disconnect the power supply harness connector (3) from the glow plug module (2).

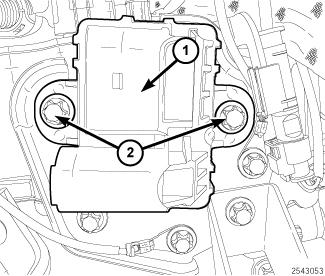

- Remove the bolts (2) and the glow plug module (1).
