2014 Jeep Compass Limited, AWD, Automatic TransFACTORY OEM SERVICE PROCEDURE
Pump, Water: Assembly: Assembly
- Thoroughly clean all gasket mating surfaces before assembling.
- Inspect water pump and components for any damage. Refer to PUMP, WATER, INSPECTION .

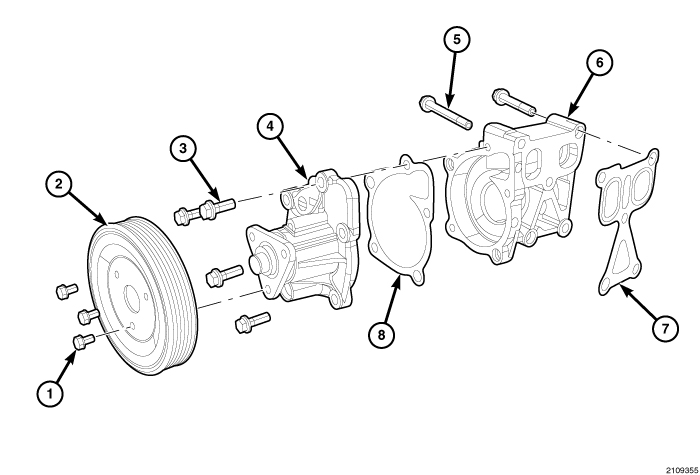

- Using bolts (3), install the water pump (4) and gasket (8) to the water pump adapter (6). Tighten the bolts (3) to 22 N.m (16 lbs. ft.)
- Using bolts (1), install the water pump pulley (2) to the water pump (4). Tighten the bolts (1) to 9 N.m (80 lbs. in.)
- Using bolts (5), install the water pump assembly and gasket to the engine block. Tighten the bolts to 24 N.m (18 lbs. ft.). Refer to PUMP, WATER, INSTALLATION .
- Start the engine and check for leaks. Refer to DIAGNOSIS AND TESTING .
