2014 Jeep Compass Limited, AWD, Automatic TransFACTORY OEM SERVICE PROCEDURE
Section 78 (Rear Driveline Module): Disassembly: Disassembly
WARNING: This page is about a different car, the 2012 Jeep Patriot and 2012 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

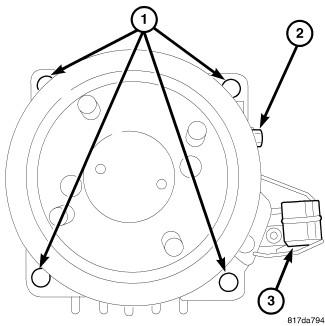

- Remove the four bolts (1) holding the rear axle electric clutch. Refer to Fig 1.
- Separate the rear axle electric clutch from the rear axle.

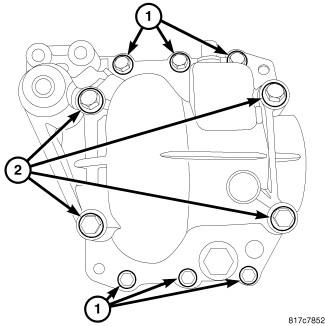

- Remove the differential case bolts (1).
- Remove the cap bolts (2).
- Remove differential cover and both axle seals.
