2014 Jeep Compass Limited, AWD, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE

Sensor, Knock: Removal: Removal

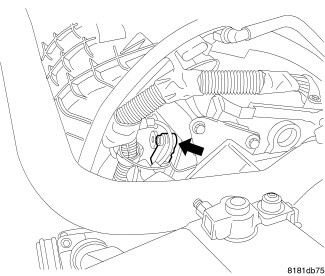

Fig 1: Knock Sensor Location

Courtesy of CHRYSLER GROUP, LLC

The knock sensor bolts into the side of the cylinder block in front of the starter under the intake manifold.

Disconnect the negative battery cable.

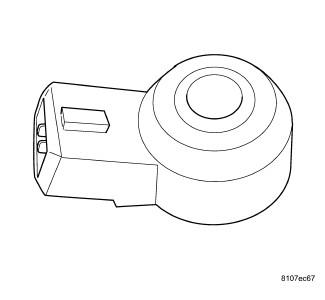

Fig 2: Knock Sensor
Courtesy of CHRYSLER GROUP, LLC
Remove the bolt holding the knock sensor.
Remove sensor with electrical connector attached.
Disconnect electrical connector from knock sensor.

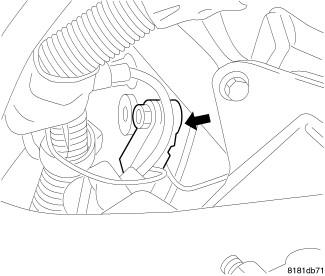

Fig 3: Knock Sensor
Courtesy of CHRYSLER GROUP, LLC
Remove the knock sensor.
