2014 Jeep Compass Limited, AWD, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE

Cylinder, Ignition Lock: Installation: Installation

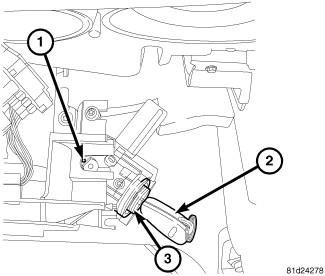

Fig 1: Identifying Ignition Key/Lock Cylinder
GC0083154Courtesy of CHRYSLER GROUP, LLC
  1. Place actuator in the lock cylinder housing to the RUN position (if not already there).
  2. Insert key into key cylinder and turn key cylinder to the RUN position.
  3. Align the retaining tab on the key cylinder with the slot in the top of the lock cylinder housing.
  4. Slide key cylinder into the lock cylinder housing until key cylinder retaining tab locks the cylinder into place.
  5. Rotate key back and forth (OFF to START), then remove and reinstall it, making sure key cylinder and lock cylinder housing operate properly.

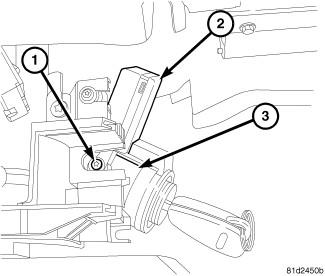

    Fig 2: Identifying Ignition Key/Lock Cylinder
    GC0083153Courtesy of CHRYSLER GROUP, LLC
  6. Slide the ring of SKREEM/WCM (2) over lock cylinder housing (3) and engage the retainer fingers in the recesses formed on the lock cylinder housing.
  7. Install screw (1) fastening the SKREEM/WCM (2) to lock cylinder housing (3). Tighten screw to 2.5 N.m (22 in. lbs.).

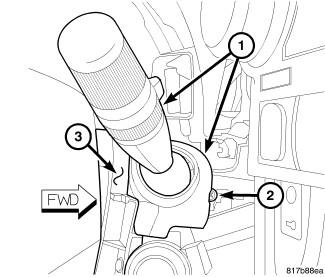

    Fig 3: Removing/Installing Right Multi-Function Switch
    GC0083152Courtesy of CHRYSLER GROUP, LLC
  8. Install and tighten the screw (2) that secures the mounting tab on the back of the right multi-function switch (1) to the mounting bracket on the clockspring (3).

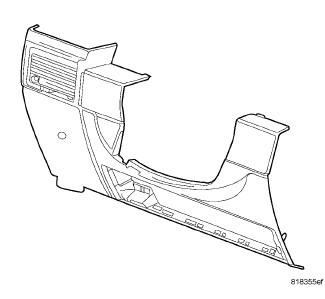

    Fig 4: Steering Column Cover
    GC0083151Courtesy of CHRYSLER GROUP, LLC
  9. Install steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
    Fig 5: Steering Column Shrouds
    GC0083150Courtesy of CHRYSLER GROUP, LLC
  10. Install upper (1) and lower (2) steering column shrouds. Refer to SHROUD, STEERING COLUMN, UPPER, INSTALLATION and SHROUD, STEERING COLUMN, LOWER, INSTALLATION .

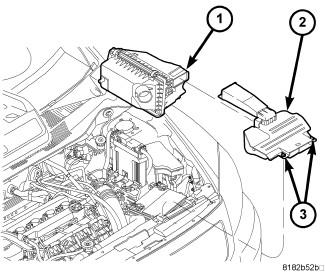

    Fig 6: Air Cleaner Box And Snorkel
    GC0098493Courtesy of CHRYSLER GROUP, LLC
  11. Install air cleaner fresh air duct (2) and disconnect and isolate negative battery cable at battery. Refer to BATTERY, INSTALLATION .
  12. Check operation of all steering column mounted components.
