B-Clutch Assembly
Always wear safety glasses when cleaning, disassembling and assembling the transmission/transaxle. Contents of the transmission/transaxle can become projectiles (e.g., springs, snap-rings, as well as metal and other debris). Failure to wear safety glasses may result in severe personal injury.
Clean the B-clutch components with suitable solvent and blow them dry with regulated 344 kPa (50 psi) shop air. Position all of the B-clutch components on a clean work surface in preparation for assembly.
- Install the O-ring seal (2) on the B-clutch piston.

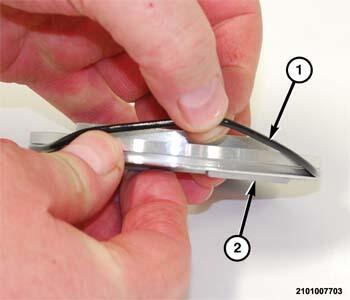

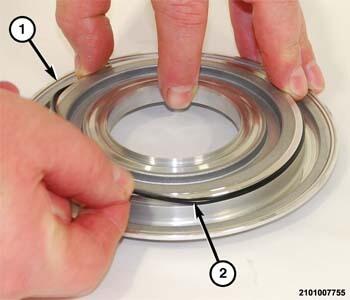

- Install the O-ring seal (1) on the B-clutch balance piston (2).

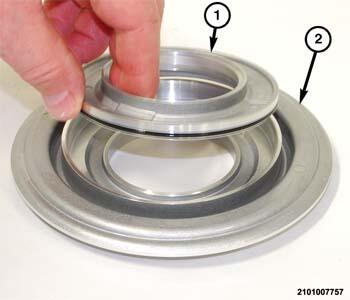

- Install the balance piston (1) in the B-clutch piston (2).

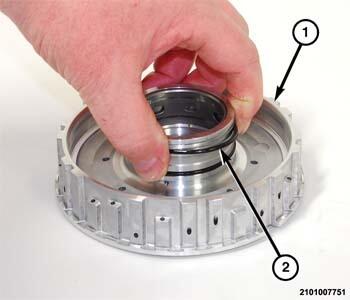

- Install New O-ring seals (2) in the B-clutch hub (1).

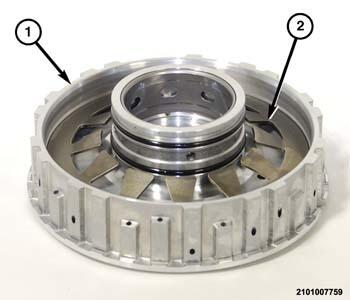

- Install the belleville spring (2) in the B-clutch hub (1).

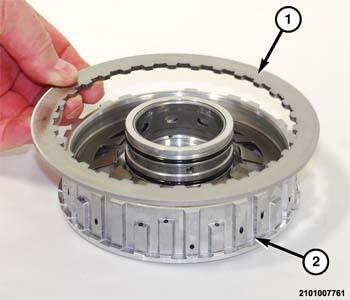

- Install the reaction plate (1) on the B-clutch hub (2).

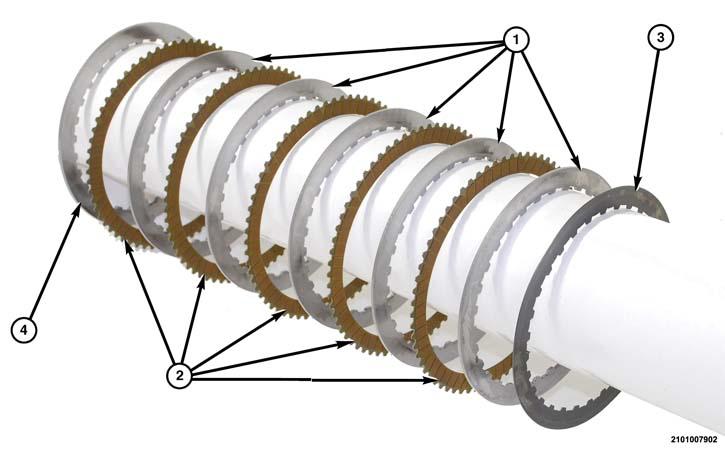

- In alternating sequence, Install the B-clutch friction plates (2) and steel plates (1) On the B-clutch hub.

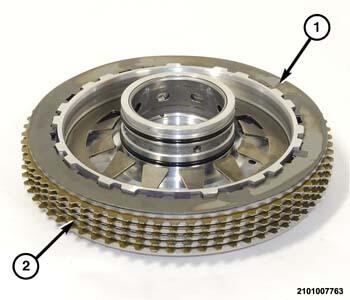

- Install the wave spring plate (1) on the B-clutch hub.

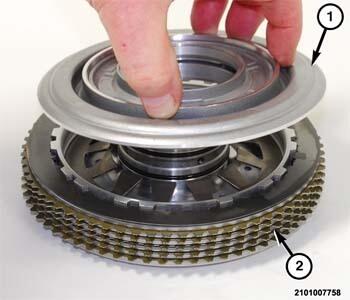

- Install the piston (1) the B-clutch (2).

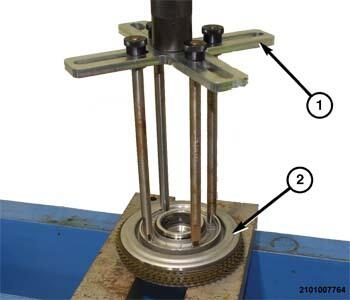

- Using tool (special tool #8901A, Pressing Tool) (with pressure scale removed (1) and legs (special tool #10428, Adapter, Pressing Tool), compress the B-clutch (2) piston to gain access to the snap-ring.
- Compress the B-clutch belleville spring and piston until the snap-ring groove is exposed.

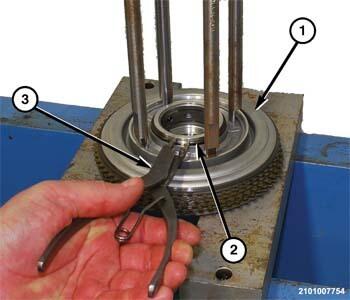

- Using a suitable snap-ring pliers (3), install the snap-ring (2) in the B-clutch (1) hub.NOTE:
Before installing the input shaft/Dog A-clutch, measure the B-clutch to determine if the proper select reaction plate was installed. Air test the dog A-clutch with shop air regulated to 344 kPa (50 psi), it fails the air test replace the input shaft.
