Radiator, Engine Cooling: Description: Description

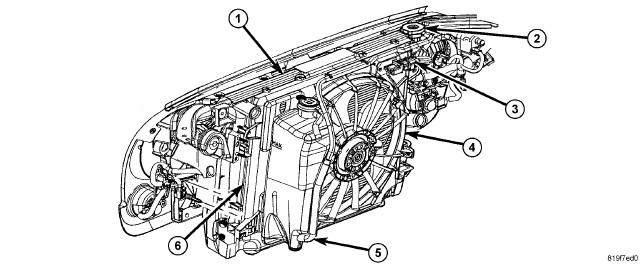

| 1 - UPPER RADIATOR SEAL |
| 2 - RADIATOR PRESSURE CAP |
| 3 - RADIATOR FAN ELECTRICAL CONNECTOR |
| 4 - RADIATOR FAN |
| 5 - COOLANT RECOVERY CONTAINER |
| 6 - RADIATOR |
A heavy duty cross-flow aluminum/plastic radiator is used. The radiator consists of an aluminum core and plastic end tanks, which are fastened to the core with clinch tabs and sealed with a high temperature rubber gasket.
Vehicles equipped with automatic transmissions use a combination A/C condenser/transmission oil cooler located on the front of the radiator.
If the plastic tank has been damaged, individual parts are not available, and the radiator must be replaced.
