2012 Jeep Wrangler Rubicon, Automatic TransFACTORY OEM SERVICE PROCEDURE
Fan, Cooling: Installation: Installation
Fig 1: Upper Radiator Seal, Overflow Bottle Supply Line, Coolant Overflow Container & Mounting Bolts
- Position fan assembly into the lower support mounts.
- Install the upper fan mounting bolts (4). Tighten the bolts to 6 N.m (53 in. lbs.)
- Install the upper fan seal.

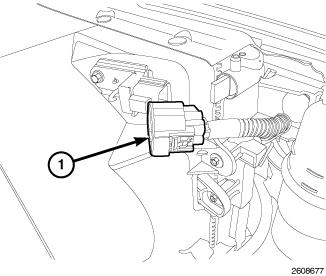

- Connect the electric fan jumper harness (1) at the fan.
- Install the coolant recovery bottle and the hose.
- Install the air filter lid.
- Connect the negative battery cable.
