2012 Jeep Liberty 2WD V6-3.7LFACTORY OEM SERVICE PROCEDURE
Transmission Control Module - Description
TRANSMISSION CONTROL MODULE - GASOLINE ENGINES

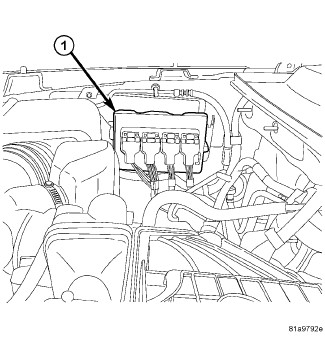

The Transmission Control Module (TCM) is a sub-module within the Powertrain Control Module (PCM) (1). The PCM is located on the right inner fender. The NGC IV (fourth-generation) Powertrain Control Module (PCM) provides integrated electronic control of all transmission functions.

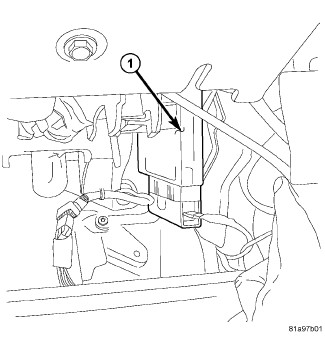

If the vehicle is equipped with a NAG1 transmission the TCM (1) is a separate module located behind the drivers knee bolster to the right of the steering column.
