2012 Jeep Compass Limited, FWD, StandardFACTORY OEM SERVICE PROCEDURE
Steering Column Control Module

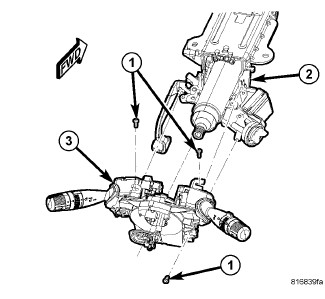

- Slide the Steering Column Control Module (SCCM) (with switch stalks) (3) onto the steering column (2).
- Install the screws (1) attaching the SCCM (with switch stalks) (3) to the steering column (2). Tighten the screws to 3 N.m (27 in. lbs.).
